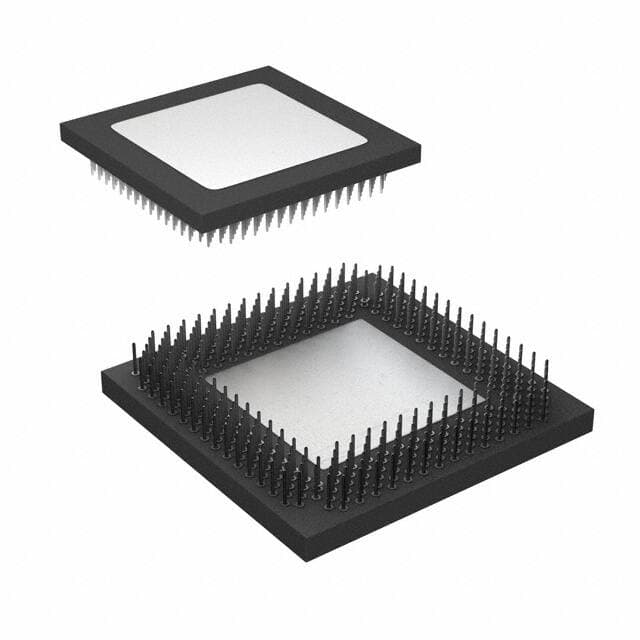

TI TMS320C80GF50

Manufacturer No:

TMS320C80GF50

Manufacturer:

Package:

305-BFCPGA Exposed Pad

Description:

2.54mm CPLD TMS320C8x Series 320C80 305 Pin 50MHz 3.3V 305-BFCPGA Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320C80GF50 information

TI TMS320C80GF50 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320C80GF50.

Type
Parameter

Mount
Surface Mount, Through Hole

Mounting Type
Through Hole

Package / Case
305-BFCPGA Exposed Pad

Number of Pins
305

Operating Temperature
0°C~85°C TC

Packaging
Tray

Series
TMS320C8x

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
305

ECCN Code
3A001.A.3

Type
Floating Point

HTS Code
8542.31.00.01

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
PERPENDICULAR

Terminal Form
PIN/PEG

Supply Voltage
3.3V

Terminal Pitch
2.54mm

Frequency
50MHz

Base Part Number
320C80

Pin Count
305

Operating Supply Voltage
3.3V

Max Supply Voltage
3.465V

Min Supply Voltage
3.135V

RAM Size
50kB

Supply Current-Max
2300mA

Bit Size
32

Data Bus Width
32b

Address Bus Width
32

Boundary Scan
YES

Low Power Mode
NO

Integrated Cache
NO

RAM (words)
50K

Voltage - I/O
3.30V

Number of Timers
1

Number of External Interrupts
4

Barrel Shifter
YES

Internal Bus Architecture
MULTIPLE

On Chip Data RAM Width
8

Non-Volatile Memory
External

On Chip Data RAM
98kB

Length
47.245mm

Height Seated (Max)
5.59mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI TMS320C80GF50.

Datasheets:

texasinstruments-tms320c80ggp60-datasheets-1409.pdf

TMS320C80GF50 Overview

This is an electronic component with a 305-BFCPGA Exposed Pad package.The packaging way is Tray.The fact that it belongs to the Floating Point family means that it can be applied to a wide range of applications.In order to mount it, it must be in the direction of Through Hole.It is essential that 0°C~85°C TC is kept at a temperature that ensures proper operation of the machine.Voltages can be input or output within 3.30V's analog voltage range.As part of the TMS320C8x series, this digital signal processor is included.The uses of this product can be terminated with 305.A voltage of 3.3V is used as the supply voltage.There are pins on the 305 component.The configuration of the device includes 305 pins.With its base part number 320C80, it is possible to identify a number of related parts.In order for the device to operate at the frequency of 50MHz, it has been designed specifically.The mounting method of the device is Surface Mount, Through Hole.The device can be classified as part of the Digital Signal Processors subcategory based on its specific characteristics.It is possible to supply as low a voltage as 3.135V to this device.There is a maximum voltage supply of 3.465V to this device.The device operates with a supply voltage of 3.3V.Industrial environments utili1e 1 timers for accurate feedback and event activation.An external source causes 4 interrupts.

TMS320C80GF50 Features

Supplied in the 305-BFCPGA Exposed Pad package
Operating supply voltage of 3.3V
4 external interrupts

TMS320C80GF50 Applications

There are a lot of Texas Instruments
TMS320C80GF50 DSP applications.

Audio
Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
Image compression
