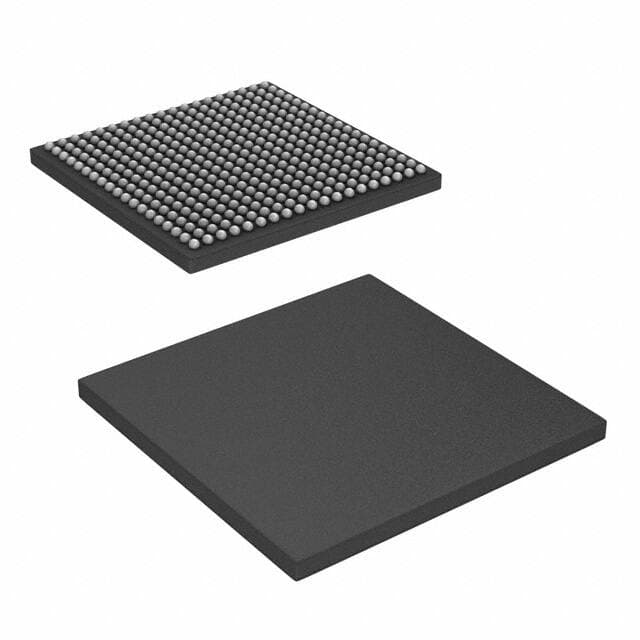

TI TMS320C6746BZWTA3

Manufacturer No:

TMS320C6746BZWTA3

Manufacturer:

Package:

361-LFBGA

Description:

0.8mm CPLD TMS320C674x Series 320C6746 361 Pin 300MHz 1.2V 361-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320C6746BZWTA3 information

TI TMS320C6746BZWTA3 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320C6746BZWTA3.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
361-LFBGA

Number of Pins
361

Operating Temperature
-40°C~105°C TJ

Packaging
Tray

Series
TMS320C674x

JESD-609 Code
e1

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
361

Type
Fixed/Floating Point

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.2V

Terminal Pitch
0.8mm

Frequency
300MHz

Base Part Number
320C6746

Pin Count
361

Interface
EBI/EMI, Ethernet MAC, Host Interface, I2C, McASP, McBSP, SPI, UART, USB

Min Supply Voltage
950mV

RAM Size
320kB

Bit Size
32

Data Bus Width
16b

Address Bus Width
23

Boundary Scan
YES

Low Power Mode
YES

RAM (words)
8192

Voltage - I/O
1.8V 3.3V

Number of UART Channels
3

Barrel Shifter
NO

Internal Bus Architecture
SINGLE

Non-Volatile Memory
ROM (1.088MB)

Voltage - Core
1.00V 1.10V 1.20V

On Chip Data RAM
488kB

Clock Rate
375MHz

Length
16mm

Height Seated (Max)
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI TMS320C6746BZWTA3.

PCN Obsolescence/ EOL:

texasinstruments-omapl138bzwtd4-pcnobsolescenceeol-5119.pdf

texasinstruments-omapl138bzwtd4-pcnobsolescenceeol-5120.pdf

PCN Design/Specification:

texasinstruments-am3505azcn-pcndesignspecification-9322.pdf

texasinstruments-am3505azcn-pcndesignspecification-9323.pdf

TMS320C6746BZWTA3 Overview

This is an electronic component with a 361-LFBGA package.The packaging way is Tray.The fact that it belongs to the Fixed/Floating Point family means that it can be applied to a wide range of applications.In order to mount it, it must be in the direction of Surface Mount.It is essential that -40°C~105°C TJ is kept at a temperature that ensures proper operation of the machine.Voltages can be input or output within 1.8V 3.3V's analog voltage range.As part of the TMS320C674x series, this digital signal processor is included.The uses of this product can be terminated with 361.A voltage of 1.2V is used as the supply voltage.There are pins on the 361 component.The configuration of the device includes 361 pins.With its base part number 320C6746, it is possible to identify a number of related parts.In order for the device to operate at the frequency of 300MHz, it has been designed specifically.The mounting method of the device is Surface Mount.The device can be classified as part of the Digital Signal Processors subcategory based on its specific characteristics.It is possible to supply as low a voltage as 950mV to this device.There is a maximum voltage supply of 3.45V to this device.The 3 UART channels support asynchronous serial communication in which data formats and transmission speeds are configurable.

TMS320C6746BZWTA3 Features

Supplied in the 361-LFBGA package

TMS320C6746BZWTA3 Applications

There are a lot of Texas Instruments
TMS320C6746BZWTA3 DSP applications.

Audio
Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
Image compression
