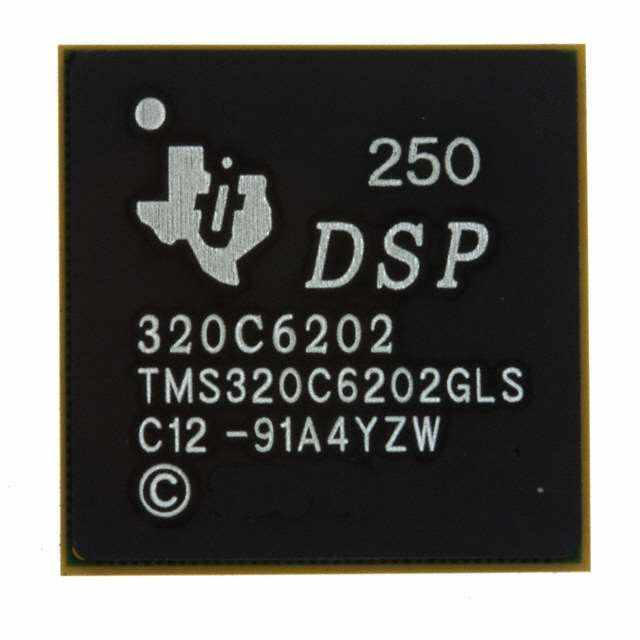

TI TMS320C6202GLS250

Manufacturer No:

TMS320C6202GLS250

Manufacturer:

Package:

384-BFBGA, FCBGA

Description:

0.8mm 256kB CPLD TMS320C62x Series 320C6202 384 Pin 250MHz 1.8V 384-BFBGA, FCBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320C6202GLS250 information

TI TMS320C6202GLS250 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320C6202GLS250.

Type
Parameter

Lifecycle Status
NRND (Last Updated: 1 day ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
384-BFBGA, FCBGA

Number of Pins
384

Weight
1.941205g

Operating Temperature
0°C~90°C TC

Packaging
Tray

Series
TMS320C62x

JESD-609 Code
e0

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
384

ECCN Code
3A001.A.3

Type
Fixed Point

Terminal Finish
Tin/Lead (Sn/Pb)

Additional Feature
ALSO REQUIRES 3.3V SUPPLY

HTS Code
8542.31.00.01

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
220

Supply Voltage
1.8V

Frequency
250MHz

Base Part Number
320C6202

Pin Count
384

Operating Supply Voltage
3.3V

Interface
McBSP

Max Supply Voltage
3.46V

Min Supply Voltage
1.71V

Memory Size
256kB

RAM Size
384kB

Number of Bits
32

Bit Size
32

Data Bus Width
16b

Boundary Scan
YES

Low Power Mode
YES

Integrated Cache
YES

Voltage - I/O
3.30V

Number of Timers
2

ROM Programmability
MROM

Number of External Interrupts
4

Barrel Shifter
NO

Internal Bus Architecture
MULTIPLE

Non-Volatile Memory
External

Voltage - Core
1.80V

Download datasheets and manufacturer documentation for TI TMS320C6202GLS250.

TMS320C6202GLS250 Overview

In the 384-BFBGA, FCBGA package, it is a type of electronic component.It has a packaging style of Tray.Fixed Point members are well suited for a wide range of applications.The device is attached in a way that faces Surface Mount.It is recommended that the device operate at a temperature of 0°C~90°C TC to ensure its normal operation.The analog voltage range of 3.30V refers to the input or output voltage.It is a part of the TMS320C62x series of digital signal processors.The use of it is terminated by 384.This device is powered by 1.8V's supply voltage.Pins are available on the 384 component.An overview of its configuration can be found in the section on 384 pins.It is possible to identify numerous related parts using the base part number 320C6202.This device is designed specifically to operate at frequency 250MHz.Using Surface Mount as a mounting method, it is mounted.The specific characteristics of this device can be categoriDigital Signal Processorsed within the Digital Signal Processors subcategory.In order to power this device, a voltage as low as 1.71V needs to be supplied.The maximum voltage for this device is 3.46V.Using 3.3V as the supply voltage, it operates.It can store 256kB data in its memory.By using this electronic part, ALSO REQUIRES 3.3V SUPPLY can be enhanced with additional features.A 2 timer can give accurate feedback and activate events in industrial settings.The external source of 4 interrupts is causing 4 interrupts.On the device, there is 32 information.The CPU is not overloaded when data is transferred via 4 DMA channels.

TMS320C6202GLS250 Features

Supplied in the 384-BFBGA, FCBGA package
Operating supply voltage of 3.3V
4 external interrupts

TMS320C6202GLS250 Applications

There are a lot of Texas Instruments
TMS320C6202GLS250 DSP applications.

Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
Image compression
Signal processing for telecommunications
Control systems
Biomedical engineering
MP3 audio player
