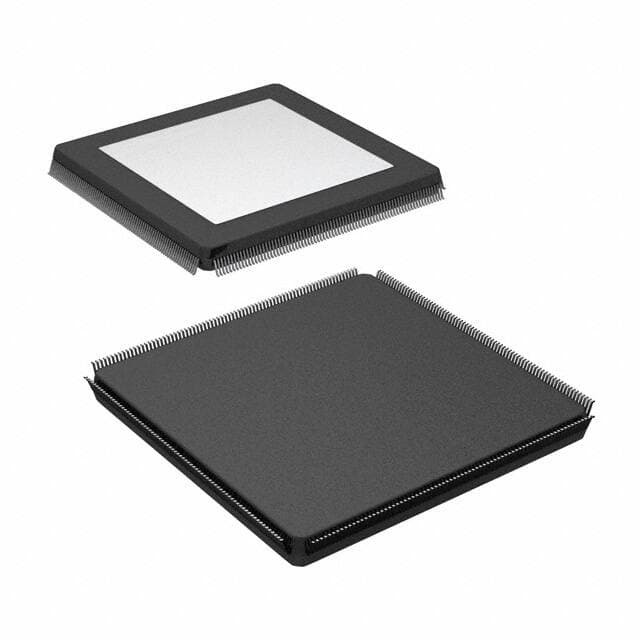

TI TMS320C44PDB60

Manufacturer No:

TMS320C44PDB60

Manufacturer:

Package:

304-BFQFP Exposed Pad

Description:

0.5mm 5V CPLD TMS320C4x Series 320C44 304 Pin 60MHz 5V 304-BFQFP Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320C44PDB60 information

TI TMS320C44PDB60 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320C44PDB60.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
304-BFQFP Exposed Pad

Number of Pins
304

Weight
28.349523g

Operating Temperature
0°C~85°C TC

Packaging
Tray

Series
TMS320C4x

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
304

ECCN Code
3A991.A.2

Type
Floating Point

HTS Code
8542.31.00.01

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
5V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Frequency
60MHz

Base Part Number
320C44

Pin Count
304

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Power Supplies
5V

Interface
Communication Ports

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

RAM Size
8kB

Supply Current-Max
950mA

Bit Size
32

Data Bus Width
32b

Address Bus Width
24

Boundary Scan
YES

Low Power Mode
YES

Integrated Cache
NO

RAM (words)
8000

Voltage - I/O
5.00V

Number of Timers
2

Number of External Interrupts
5

Barrel Shifter
YES

Internal Bus Architecture
MULTIPLE

On Chip Data RAM Width
8

Download datasheets and manufacturer documentation for TI TMS320C44PDB60.

Datasheets:

texasinstruments-tms320c44pdb50-datasheets-2781.pdf

TMS320C44PDB60 Overview

The 304-BFQFP Exposed Pad package contains these electronic components.Packaging way Tray is provided.The Floating Point family provides a wide range of applications.There is a mounting point for it along the direction of Surface Mount.At the temperature of 0°C~85°C TC, the device is guaranteed to operate normally.In analog circuits, the analog voltage range 5.00V represents the voltage range that is available for input or output.TMS320C4x series digital signal processors contain this digital signal processor.The 304 terminations are used for its uses.It works with a voltage of 5V as a supply voltage.Pins are located on the 304 component.In its configuration, it contains 304 pins.Several related parts can be identified using its base part number, 320C44.The device operates at the frequency of 60MHz in accordance with a specific design.In order to mount it, it utiliSurface Mountes the Surface Mount method.On the basis of its specific characteristics, this device can be classified as a Digital Signal Processors device.This device operates at a voltage as low as 4.75V.Devices like this can be powered by voltages up to 5.25V.In order for it to operate, 5V is the supply voltage.There is an electric supply from 5V.In industrial environments, 2 timers are programmed to provide accurate feedback.External sources cause 5 interrupts.6 DMA channels transfer data without overloading the CPU.

TMS320C44PDB60 Features

Supplied in the 304-BFQFP Exposed Pad package
Operating supply voltage of 5V
5 external interrupts

TMS320C44PDB60 Applications

There are a lot of Texas Instruments
TMS320C44PDB60 DSP applications.

Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
Image compression
Signal processing for telecommunications
Control systems
