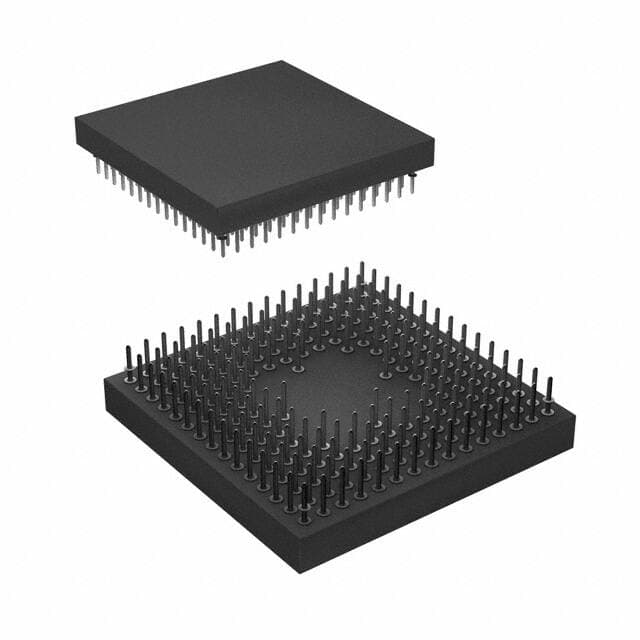

TI TMS320C30GEL50

Manufacturer No:

TMS320C30GEL50

Manufacturer:

Package:

181-BCPGA Exposed Pad

Description:

2.54mm 5V 16kB CPLD TMS320C3x Series 320C30 181 Pin 50MHz 5V 181-BCPGA Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320C30GEL50 information

TI TMS320C30GEL50 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320C30GEL50.

Type
Parameter

Mount
Surface Mount, Through Hole

Mounting Type
Through Hole

Package / Case
181-BCPGA Exposed Pad

Number of Pins
181

Operating Temperature
0°C~85°C TC

Packaging
Tray

Series
TMS320C3x

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
181

ECCN Code
3A001.A.3

Type
Floating Point

HTS Code
8542.31.00.01

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
PERPENDICULAR

Terminal Form
PIN/PEG

Supply Voltage
5V

Terminal Pitch
2.54mm

Frequency
50MHz

Base Part Number
320C30

Pin Count
181

Operating Supply Voltage
5V

Interface
Serial Port

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Memory Size
16kB

RAM Size
8kB

Supply Current-Max
600mA

Bit Size
32

Data Bus Width
32b

Address Bus Width
24

On Chip Program ROM Width
32

Boundary Scan
NO

Low Power Mode
NO

Integrated Cache
NO

RAM (words)
2000

Voltage - I/O
5.00V

Number of Serial I/Os
2

Number of Timers
2

ROM Programmability
MROM

Number of External Interrupts
4

Barrel Shifter
YES

Internal Bus Architecture
MULTIPLE

On Chip Data RAM Width
32

Non-Volatile Memory
ROM (16kB)

Download datasheets and manufacturer documentation for TI TMS320C30GEL50.

Datasheets:

texasinstruments-tms320c30gel40-datasheets-2771.pdf

TMS320C30GEL50 Overview

It is a type of electronic component available in package 181-BCPGA Exposed Pad.Packaging method Tray is provided.With its association with Floating Point, it is suitable for a wide range of applications.The mounting is carried out in the direction of Through Hole.Keeping the device at the temperature of 0°C~85°C TC will ensure that it runs as it should.The analog voltage range of 5.00V refers to the input or output voltage.The TMS320C3x series incorporates this digital signal processor.The terminations for its uses are 181.It is supplied with voltage by 5V.In this component, there are pins for 181.This configuration contains 181 pins.By using its base part number of 320C30, many related parts can be identified.A specific design is present for the device in order for it to operate at the frequency of 50MHz.A Surface Mount, Through Hole mounting method is used for its mounting.The device can be classified under the subcategory Digital Signal Processors based on its specific characteristics.In order to power this device, a voltage as low as 4.75V needs to be supplied.A maximum voltage of 5.25V can be provided to this device.This device is powered by a voltage of 5V.Using this device, you can store 16kB data.5V electric power powers it.It is possible to program 2 timers in industrial environments to provide accurate feedback and trigger events.There are 4 interrupts caused by external factors.It uses 1 DMA channels to transfer data without overloading the CPU.Data is transferred between devices using serial 2 I/Os.
