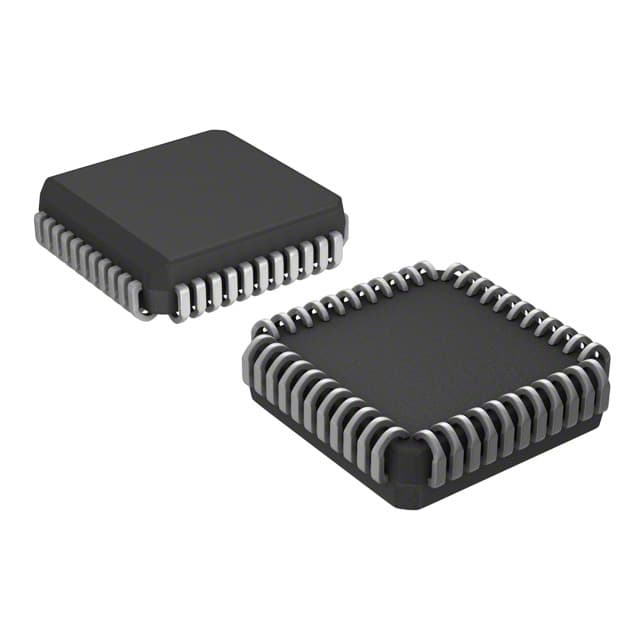

TI TMS320C10FNL25

Manufacturer No:

TMS320C10FNL25

Manufacturer:

Package:

44-LCC (J-Lead)

Description:

1.27mm 5V 3kB CPLD TMS320C1x Series TMS320C10 44 Pin 25MHz 5V 44-LCC (J-Lead)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320C10FNL25 information

TI TMS320C10FNL25 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320C10FNL25.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
44-LCC (J-Lead)

Number of Pins
44

Operating Temperature
0°C~70°C TA

Packaging
Tube

Series
TMS320C1x

JESD-609 Code
e4

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

ECCN Code
3A991.A.2

Type
Fixed Point

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Additional Feature
5 MIPS

HTS Code
8542.31.00.01

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
260

Supply Voltage
5V

Terminal Pitch
1.27mm

Frequency
25MHz

Base Part Number
TMS320C10

Pin Count
44

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Power Supplies
5V

Interface
Parallel

Max Supply Voltage
5.25V

Min Supply Voltage
4.5V

Memory Size
3kB

RAM Size
288B

Supply Current-Max
65mA

Bit Size
16

Address Bus Width
12

Boundary Scan
NO

Low Power Mode
YES

External Data Bus Width
16

RAM (words)
144

Voltage - I/O
5.00V

Barrel Shifter
YES

Internal Bus Architecture
MULTIPLE

Non-Volatile Memory
ROM (3kB)

Length
16.585mm

Height Seated (Max)
4.57mm

Download datasheets and manufacturer documentation for TI TMS320C10FNL25.

Datasheets:

texasinstruments-tms320c10nl-datasheets-2722.pdf

TMS320C10FNL25 Overview

An electronic component available in package 44-LCC (J-Lead).Tube packaging is provided for it.Its Fixed Point status makes it ideal for a wide range of applications.It is mounted in the direction of Surface Mount as shown in the image below.If it is operating at the temperature of 0°C~70°C TA, then it will be operating normally.This refers to the analog voltage range that can be input or output from 5.00V.There are several digital signal processors in the TMS320C1x series, including this one.In terms of its uses, it has 44 terminations.5V provides the supply voltage for it.The 44 component has pins.There are 44 pins in its configuration.The base part number TMS320C10 can be used to identify many associated parts.To operate at 25MHz frequency, the device has a specific design.Mounting is accomplished using Surface Mount.According to its specific characteristics, this device is classified in the subcategory Digital Signal Processors.In this device, the minimum voltage is 4.5V.It can be supplied with a maximum voltage of 5.25V.A supply voltage of 5V is required for its operation.Its memory can be used to store 3kB data.It receives electricity from 5V.It can also provide more features of 5 MIPS.
