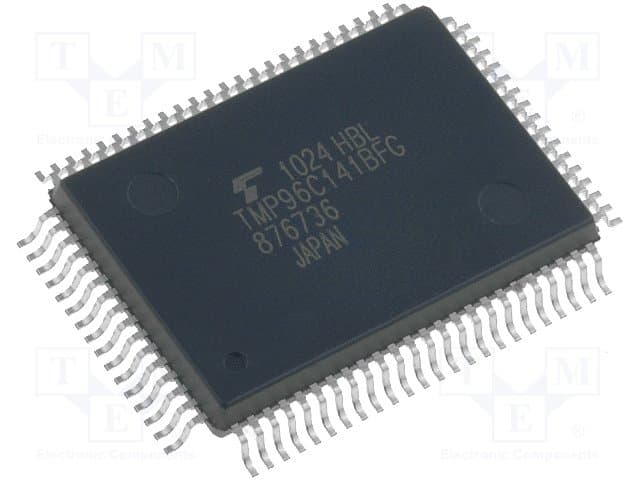

TOSHIBA TMP96C141BFG

Manufacturer No:

TMP96C141BFG

Manufacturer:

TOSHIBA

Package:

PQFP

Description:

Microcontroller 80 Pin 20MHz 5V PQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMP96C141BFG information

TOSHIBA TMP96C141BFG technical specifications, attributes, parameters and parts with similar specifications to TOSHIBA TMP96C141BFG.

Type
Parameter

Mount
Surface Mount

Package / Case
PQFP

Number of Pins
80

Published
2003

Number of Terminations
80

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.31.00.01

Subcategory
Microcontrollers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Supply Voltage
5V

Terminal Pitch
0.8mm

Frequency
20MHz

Pin Count
80

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
OTHER

Interface
UART

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Number of I/O
47

RAM Size
1kB

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Supply Current-Max
50mA

Bit Size
16

Frequency (Max)
20MHz

Has ADC
YES

DMA Channels
YES

Data Bus Width
16b

PWM Channels
YES

DAC Channels
NO

Number of Timers/Counters
6

Address Bus Width
24

ROM (words)
0

CPU Family
TLCS-900

RAM (bytes)
1024

Length
20mm

Height Seated (Max)
3.05mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TOSHIBA TMP96C141BFG.

TMP96C141BFG Overview

The package is PQFP-shaped. There are 47 I/Os. This device belongs to the MICROCONTROLLER uPs/uCs/Peripheral ICs category. IC Chip 80 has 80 terminations. 16-bits are used for its size. IC Chip has 5V volt supply outputs. With YES DMA channels, Microcontroller chip can handle large data transfers. Using a 20MHz frequency, this electronic part can perform efficiently. Devices work in YES PWM channels. On the chip, 80 pins are accessible. In total, there are 6 timers/counters on the device. The pin count is 80. There is an embedded the TLCS-900 CPU family inside the device, which makes it a powerful device. There is ROMless memory on this piece of equipment.

TMP96C141BFG Features

PQFP package
Microcontrollers subcategory
Minimum temperature of -40°C

TMP96C141BFG Applications

There are a lot of Toshiba
TMP96C141BFG Microcontroller applications.

Instrument control
Toys
Robots
Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
