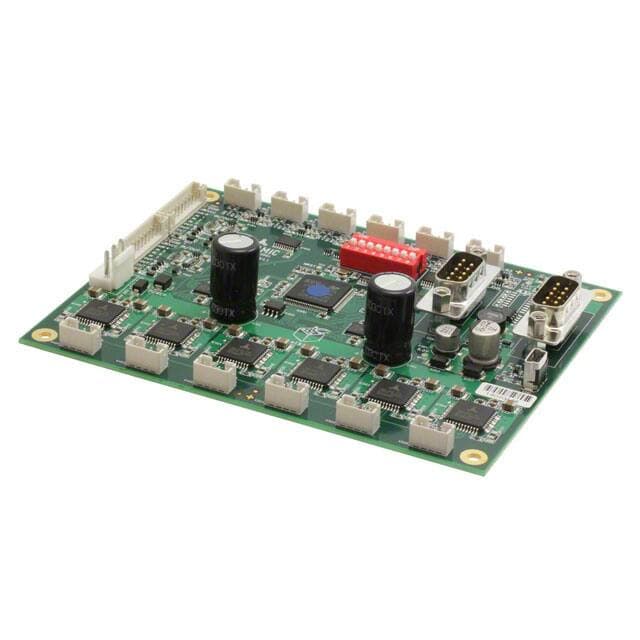

Trinamic Motion Control GmbH TMCM-6110

Manufacturer No:

TMCM-6110

Manufacturer:

Trinamic Motion Control GmbH

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMCM-6110 information

Trinamic Motion Control GmbH TMCM-6110 technical specifications, attributes, parameters and parts with similar specifications to Trinamic Motion Control GmbH TMCM-6110.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Chassis Mount

Operating Temperature
-40°C~70°C

Series
TMCM

Published
2014

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
Board

Voltage - Supply
12V~34VDC

Output Voltage
24V

Interface
CAN, RS-485

Current - Output
1.1A

Voltage - Load
7V~34V

Motor Type
Stepper

Control / Drive Type
Stepper, Bipolar

Number of Motors
6

Length
100.076mm

Width
130.048mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Trinamic Motion Control GmbH TMCM-6110.

TMCM-6110 Description

A small 6-axes stepper motor controller/driver standalone board is called the TMCM-6110. Up to 6 bipolar stepper motors with 1.1A RMS coil current can be supported. Each motor has a unique reference/end switch and motor connector. The module also provides eight general-purpose inputs and eight general-purpose outputs.

TMCM-6110 Features

uses the TMC429 stepper motor controller to change a variety of motion-specific parameters on the fly.
Employs the sophisticated stepper motor driver IC TMC260.
256 microsteps maximum per fullstep
Built-in safety against overheating and low voltage

TMCM-6110 Applications

Switching applications
