TMCM-1110-STEPROCKER Information

Trinamic Motion Control GmbH TMCM-1110-STEPROCKER technical specifications, attributes, parameters and parts with similar specifications to Trinamic Motion Control GmbH TMCM-1110-STEPROCKER.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Chassis Mount

Operating Temperature
-25°C~80°C

Series
TMCM

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
Board

Voltage - Supply
12V~24VDC

Interface
RS-485, Step / Direction, USB

Current - Output
1A 2.8A

Type
Parameter

Voltage - Load
10V~30V

Motor Type
Stepper

Control / Drive Type
Stepper, Bipolar

Number of Motors
1

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Trinamic Motion Control GmbH TMCM-1110-STEPROCKER.

TMCM-1110-STEPROCKER Description

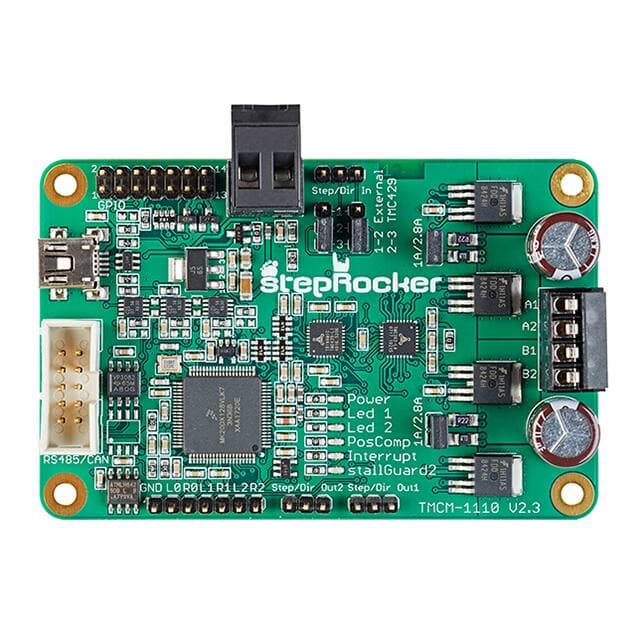

The TMCM-1110_V23 stepRocker is a single axis motor controller/driver board for 2-phase bipolar stepper motors. It features the TRINAMIC controller/driver chain consisting of TMC429 and TMC262 in combination with an ARM Cortex-M4™ (MK20DX128VLK7) processor. The Module is intended to be a fully functional development platform. A stepRocker can be extended to a full 3- axes system using two additional boards, because the TMCM-1110 stepRocker board can be both, master or slave.

TMCM-1110-STEPROCKER Features

• Single axis controller/driver for 2-

phase bipolar stepper motor

• 2 and 3 axes systems are possible

with additional boards configured

as slaves

• +10. . . 30V DC supply voltage

• Up to 2.8A RMS motor current

• RS485 & USB interface

• Multi-purpose inputs and outputs

TMCM-1110-STEPROCKER Applications

• Laboratory Automation

• Manufacturing

• Robotics

• Factory Automation

• Test & Measurement

• Technology evaluation

• First experiences with stepper motors

• Hobby applications

TMCM-1110-STEPROCKER Relevant information
