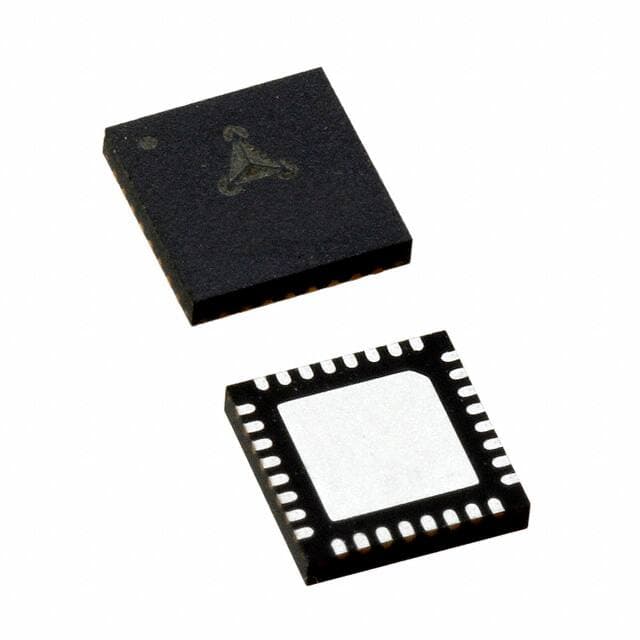

Trinamic Motion Control GmbH TMC223-LI

Manufacturer No:

TMC223-LI

Manufacturer:

Trinamic Motion Control GmbH

Package:

32-VFQFN Exposed Pad

Description:

7mm mm Motor Drivers 32 7mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMC223-LI information

Trinamic Motion Control GmbH TMC223-LI technical specifications, attributes, parameters and parts with similar specifications to Trinamic Motion Control GmbH TMC223-LI.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
32-VFQFN Exposed Pad

Number of Pins
32

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Published
2011

JESD-609 Code
e3

Part Status
Last Time Buy

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

HTS Code
8542.39.00.01

Technology
Power MOSFET

Voltage - Supply
3.3V~5V

Terminal Position
QUAD

Terminal Form
NO LEAD

Terminal Pitch
0.65mm

Function
Driver - Fully Integrated, Control and Power Stage

Supply Voltage-Max (Vsup)
29V

Supply Voltage-Min (Vsup)
8V

Interface
I2C

Output Configuration
Half Bridge (4)

Current - Output
570mA

Logic Function
AND

Voltage - Load
8V~29V

Motor Type - Stepper
Bipolar

Step Resolution
1, 1/2, 1/4, 1/8, 1/16

Length
7mm

Height Seated (Max)
0.9mm

Width
7mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Trinamic Motion Control GmbH TMC223-LI.

Datasheets:

trinamicmotioncontrolgmbh-tmc223si-datasheets-1568.pdf

TMC223-LI Overview

This package was designed with Trayin mind.32-VFQFN Exposed Padcases are included with the part.The part should be mounted by Surface Mount.I believe it is suitable for the component connected to General Purpose.There is a capability for the device to provide 3.3V~5V volts.This device operates at a temperature of -40°C~85°C TA.This part provides 32terminations.If the voltage is applied to the load at the rate of [0], the load will be affected.The recommended way to mount it is Surface Mount.Drivers controllers is recommended to keep the part output current at 570mA.This device utilizes the STEPPER MOTOR CONTROLLERanalog integrated circuit.A device with 32pins is available.

TMC223-LI Features

Applications : General Purpose
Load voltage across the chip 8V~29V

TMC223-LI Applications

There are a lot of Trinamic Motion Control GmbH
TMC223-LI motor drivers applications.

Automotive applications
Dome
Dash
Footwell lighting
Indicator
Telltale lights
Infotainment backlighting
Tail lights
Turn signals
Brake lights
