Texas Instruments TMAG5110C2RQDBVRQ1

Manufacturer No:

TMAG5110C2RQDBVRQ1

Manufacturer:

Texas Instruments

Package:

Description:

Automotive, high-sensitivity, 2D, dual-channel, Hall-effect latch

Quantity:

In Stock :Available

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Tue, Apr 28 - Wed, Apr 29, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

TMAG5110C2RQDBVRQ1 Information

Texas Instruments TMAG5110C2RQDBVRQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TMAG5110C2RQDBVRQ1.

Type
Parameter

Type
2D Latch

Operate point (typ) (mT)
1.4, 3

Operate point (max) (mT)
2.6, 5.3

Release point (min) (mT)
-5.3, -2.6

Supply current (µA)
6000

Bandwidth (kHz)
40

Supply voltage (min) (V)
2.5

Supply voltage (max) (V)
38

Rating
Automotive

Operating temperature range (°C)
-40 to 125

Type
Parameter

Output
Open drain

TI functional safety category
Functional Safety-Capable

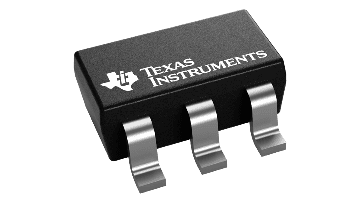

Package
SOT-23 (DBV)

Pins
5

Size
8.12 mm² 2.9 x 2.8

REACH Status
Yes

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Texas Instruments TMAG5110C2RQDBVRQ1.

The TMAG5110-Q1 and TMAG5111-Q1 are 2-dimensional, dual Hall-effect latches operating from a 2.5V to 38V power supply. Designed for high-speed and high-temperature motor applications, these devices are optimized for applications leveraging rotating magnets. Integrating two sensors and two separate signal chains the TMAG511x-Q1 offers two independent digital outputs giving speed and direction calculation (TMAG5111-Q1) or giving directly the digital output of each independent latches (TMAG5110-Q1). This high level of integration allows the use of a single TMAG511x-Q1 device instead of two separate latches.

The device is offered in a standard 3mT operating point, as well as a high-sensitivity 1.4mT operating point. The higher magnetic sensitivity provides flexibility in low-cost magnet selection and mechanical component placement. The TMAG511x-Q1 is also available in three 2-axis combination options (X-Y, Z-X, Z-Y) to allow flexible placement of the sensor relative to the magnet.

The device performs consistently across a wide ambient temperature range of –40°C to +125°C.

AEC-Q100 qualified with the following results:
- Device temperature grade 1: –40°C to 125°C ambient operating temperature range
- Device HBM ESD classification Level H3A
- Device CDM ESD classification Level C6
Functional Safety-Capable
- Documentation available to aid functional safety system design
2D sensing with planar and vertical hall sensors
Inherent quadrature independent of magnet alignment or magnet pole pitch
Two functional options available:
- TMAG5110-Q1: independent 2D outputs
- TMAG5111-Q1: speed and direction outputs
Ultra-high magnetic sensitivity:
- TMAG511xx2-Q1: ±1.4mT (typical)
- TMAG511xx4-Q1: ±3mT (typical)
Fast 40kHz sensing bandwidth
2.5V to 38V operating VCC range
Open-drain output (10mA sink)
Wide ambient operating temperature range:
- –40°C to +125°C
Protection features
- Reverse supply protection (up to –20V)
- Device survives up to 40V
- Output short-circuit protection
- Output current limitation
