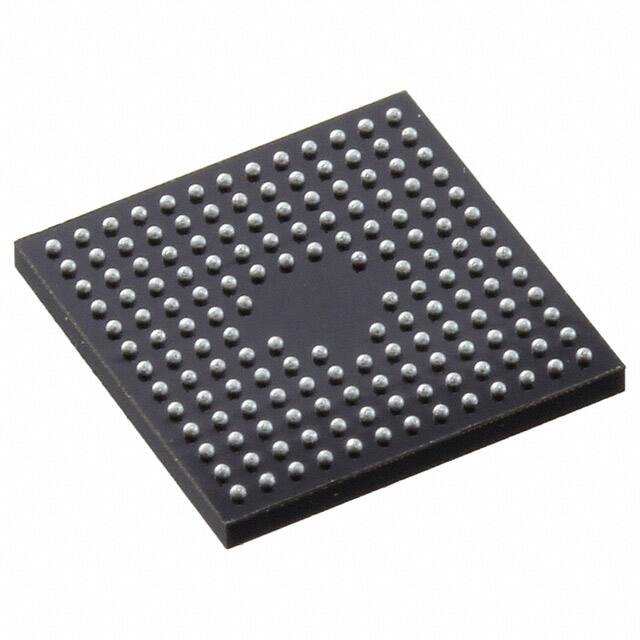

TI TM4C123GH6ZRBI

Manufacturer No:

TM4C123GH6ZRBI

Manufacturer:

Package:

157-VFBGA

Description:

256KB 256K x 8 FLASH ARM® Cortex®-M4F 32-Bit Microcontroller Tiva? C Series M4C123 157 Pin 80MHz 1.2V 157-VFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TM4C123GH6ZRBI information

TI TM4C123GH6ZRBI technical specifications, attributes, parameters and parts with similar specifications to TI TM4C123GH6ZRBI.

Type
Parameter

Factory Lead Time
6 Weeks

Contact Plating
Copper, Silver, Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
157-VFBGA

Number of Pins
157

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
Tiva? C

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
157

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Subcategory
Microcontrollers

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.2V

Frequency
80MHz

Base Part Number
M4C123

Operating Supply Voltage
3.3V

Memory Size
256kB

Oscillator Type
Internal

Number of I/O
120

RAM Size
32K x 8

Voltage - Supply (Vcc/Vdd)
1.08V~3.63V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Number of Bits
12

Core Processor
ARM® Cortex®-M4F

Peripherals
Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
256KB 256K x 8

Connectivity
CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG

Bit Size
32

Data Converter
A/D 24x12b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

PWM Channels
YES

Core Architecture
ARM

EEPROM Size
2K x 8

Number of A/D Converters
24

Download datasheets and manufacturer documentation for TI TM4C123GH6ZRBI.

Datasheets:

texasinstruments-tm4c123ae6pmir-datasheets-3323.pdf

texasinstruments-tm4c123ae6pmir-datasheets-3324.pdf

TM4C123GH6ZRBI Overview

The package has a 157-VFBGA shape. With 120 I/Os, it's pretty good. The Microcontroller's mounting type is Surface Mount and this IC chip has the following features. As the name implies, this Microcontroller is based on the 32-Bit core. As far as its program memory type is concerned, it is FLASH. Temperatures within -40°C~85°C TA range are measured by this Microcontroller. The Tiva? C series is comprised of this electrical component. The electronic part has a program memory size of 256KB 256K x 8. There's a ARM® Cortex®-M4F Core Processor inside. The IC chip fits into the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. There are 157 terminations on the IC chip. 32-bits are the size of the data that comes with MCU. A 1.2V volt supply is provided by the Microcontroller chip. In addition to that, MCU chip has YES DMA channels. Its memory size is 256kB. It is possible to find alternatives to the base part number M4C123 by using the part number search tool. An effective performance can be achieved at a frequency of 80MHz. There are a total of YES channels in the device. It is possible to access the 157 pins on the chip. This device features a ARM core architecture. As far as UART channels are concerned, it has 8. The ADC channels on this device total 2 in number. It has a set of 24 A/D converters on board the device. A chip with 12 bits has 12 bits in total. The part has been designed to incorporate 6 I2C channels.
