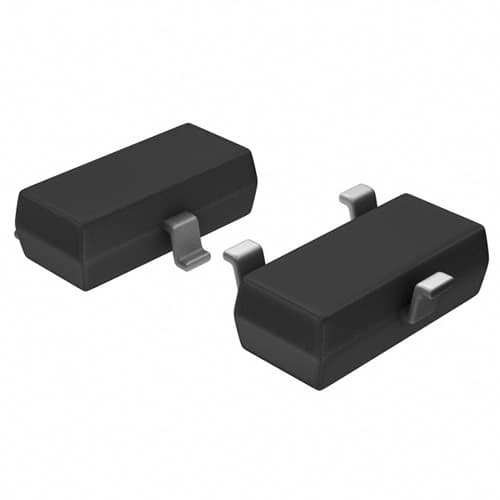

TI TLVH432BIDBZRG4

Manufacturer No:

TLVH432BIDBZRG4

Manufacturer:

Package:

TO-236

Description:

0.95mm PMIC 1 Channel TO-236

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TLVH432BIDBZRG4 information

TI TLVH432BIDBZRG4 technical specifications, attributes, parameters and parts with similar specifications to TI TLVH432BIDBZRG4.

Type
Parameter

Package / Case
TO-236

Surface Mount
YES

Number of Pins
3

Packaging
Tape & Reel (TR)

Tolerance
0.5%

JESD-609 Code
e4

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Temperature Coefficient
129 ppm/°C

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Voltage References

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.95mm

Pin Count
3

Number of Outputs
1

Output Voltage
1.24V

Temperature Grade
INDUSTRIAL

Number of Channels
1

Trim/Adjustable Output
YES

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Current - Output
70mA

Max Output Voltage
18V

Voltage - Output
18V

Max Input Voltage
20V

Reference Type
Adjustable, Shunt

Current - Cathode
100μA

Length
2.92mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI TLVH432BIDBZRG4.

TLVH432BIDBZRG4 Overview

A handy TO-236 package is used.Uses the handy Adjustable, Shunt package.The handy Tape & Reel (TR) package is used in this program.Various functions terminate at 3.Voltage reference with 0.5% tolerance.The reference voltage is coupled with an analog IC THREE TERMINAL VOLTAGE REFERENCE.According to the test statistics, it produces 1.24V voltage.In this case, it is sufficient to generate 1 outputs.There are 3 pins on the voltage reference ic.The temperature should be kept below 260 during the reflow soldering procedure.The voltage reference ic is settled with 3 pins.The voltage reference circuit can be used in a variety of applications as a type of Voltage References.Applications with 70mA input are suitable for the reference voltage.The reference voltage cannot produce output current greater than 80mA.High-quality communication is available through 1 channels.The maximum output voltage is 18V.Its cathode current should generally be 100μA.Users should confine the voltage in accordance with the part's maximum input voltage of 20V.The ambient temperature should not exceed 85°C.Temperatures as low as -40°C degrees Celsius are -40°C problem for it.The output voltage is 18V.

TLVH432BIDBZRG4 Features

0.5% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: 260
Channel Number: 1
Max Output Voltage: 20V

TLVH432BIDBZRG4 Applications

There are a lot of Texas Instruments
TLVH432BIDBZRG4 Voltage Reference applications.

Cellular phones, notebook computers, PDAs, GPSs, and DMMs
Computer workstations
Suitable for use with a wide range of video RAMDACs
Smart industrial transmitters
PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
Industrial process control systems
