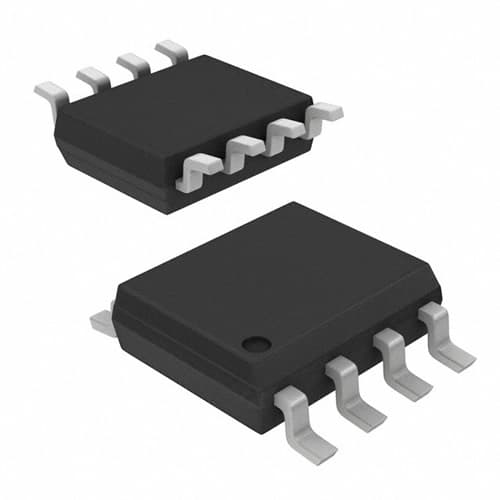

TI TLV2451AIDRG4

Manufacturer No:

TLV2451AIDRG4

Manufacturer:

Package:

Description:

10mA per Channel 5nA 70 dB Instrumentational OP Amps 0.007μA 3V 8 Pins D

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TLV2451AIDRG4 information

TI TLV2451AIDRG4 technical specifications, attributes, parameters and parts with similar specifications to TI TLV2451AIDRG4.

Type
Parameter

Package / Case
D

Surface Mount
YES

Number of Pins
8

Packaging
Tape & Reel

JESD-609 Code
e4

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifier

Technology
CMOS

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Pin Count
8

Operating Supply Voltage
3V

Number of Elements
1

Temperature Grade
AUTOMOTIVE

Max Supply Voltage
6V

Min Supply Voltage
2.7V

Operating Supply Current
23μA

Power Dissipation
710mW

Current - Output
10mA

Slew Rate
0.11 V/μs

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
70 dB

Current - Input Bias
5nA

Output Current per Channel
10mA

Input Offset Voltage (Vos)
1mV

Bandwidth
220 kHz

Gain Bandwidth Product
220 kHz

Unity Gain BW-Nom
200 kHz

Voltage Gain
103dB

Average Bias Current-Max (IIB)
0.007μA

Low-Offset
NO

Frequency Compensation
YES

Max Dual Supply Voltage
3V

Low-Bias
NO

Micropower
YES

Min Dual Supply Voltage
1.35V

Bias Current-Max (IIB) @25C
0.005μA

Programmable Power
NO

Max I/O Voltage
1mV

Length
4.9mm

Download datasheets and manufacturer documentation for TI TLV2451AIDRG4.

TLV2451AIDRG4 Overview

There is a D case in which the instrumentation amplifier is packaged. Buffer amps of this type are called OPERATIONAL AMPLIFIER-types. A Tape & Reel case is used to deliver the buffer op amp. The number of terminations is approaching the 8 mark. The total number of pins on linear amplifier is 8. The linear amplifier should be run at 3V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifier devices. 8 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 1mV. It is possible to operate this buffer amplifier from a supply current of 23μA . 103dB should be the voltage gain. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 125°C, Instrumentation amplifier should not be used. There are 1 elements in total in this linear amplifier. The operating supply voltage of the buffer op amp is rated at 3V. The electrical part is capable of being powered by a voltage of under 6V, which means that it can be used with any voltage supply. As a rule of thumb, the supply voltage of the op amp should not be lower than 2.7V. As a general rule, you should conduct this electronic component under dual supply voltages of 3V volts.

TLV2451AIDRG4 Features

8 Pins
supply voltage of 3V
103dB voltage gain

TLV2451AIDRG4 Applications

There are a lot of Texas Instruments
TLV2451AIDRG4 Instrumentational OP Amps applications.

Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
