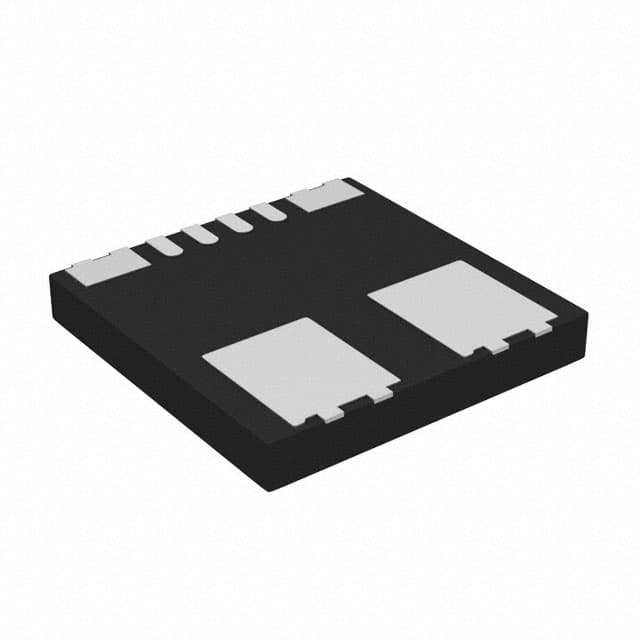

INFINEON TLI4970D050T4XUMA1
Manufacturer No:
TLI4970D050T4XUMA1
Manufacturer:
Package:
8-PowerTDFN
Description:
Automotive, AEC-Q100 Series Hall Effect, Differential Sensor 1-Channel Bidirectional -40°C~85°C 3.1V~3.5V DC~18kHz Accuracy-±0.05% Linearity-±1.6%
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
TLI4970D050T4XUMA1 information
INFINEON TLI4970D050T4XUMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON TLI4970D050T4XUMA1.
- Type
- Parameter
- Factory Lead Time
- 26 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 8-PowerTDFN
- Number of Pins
- 8
- Current Sensing
- 50A
- Operating Temperature
- -40°C~85°C
- Packaging
- Tape & Reel (TR)
- Series
- Automotive, AEC-Q100
- Published
- 2014
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 8
- Terminal Finish
- Matte Tin (Sn)
- Voltage - Supply
- 3.1V~3.5V
- Terminal Position
- DUAL
- Terminal Form
- NO LEAD
- Number of Functions
- 1
- Supply Voltage
- 3.3V
- Frequency
- DC~18kHz
- Output
- SPI
- Output Type
- Digital
- Polarity
- Unidirectional
- Number of Channels
- 1
- Analog IC - Other Type
- ANALOG CIRCUIT
- Operating Supply Current
- 12mA
- Polarization
- Bidirectional
- Max Supply Current
- 20mA
- Accuracy
- ±0.05%
- Response Time
- 57μs
- Halogen Free
- Halogen Free
- Bandwidth
- 18 kHz
- Sensor Type
- Hall Effect, Differential
- Linearity
- ±1.6%
- Sensing Method
- Hall Effect
- For Measuring
- AC/DC
- Max Junction Temperature (Tj)
- 125°C
- Ambient Temperature Range High
- 85°C
- Height
- 1.05mm
- Length
- 7mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for INFINEON TLI4970D050T4XUMA1.
Other Related Documents:
PCN Packaging:
ConflictMineralStatement:
TLI4970D050T4XUMA1 Overview
As a safety precaution, the current sensors are packaged in 8-PowerTDFN packages. To protect the current sensors against damage, they have been packaged in the Tape & Reel (TR). Current sensors should not supply a current greater than 20mA. In the current sensors, the terminations are 8. This current sensor contains 8 pins. It is possible to supply voltage of 3.3V when these current sensors are working. A current sensor's voltage should not exceed 3.5V. When operating, these components should supply 12mA current.
TLI4970D050T4XUMA1 Features
Moisture Sensitivity Level: 3 (168 Hours)
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Surface Mount
Sensor Type: Hall Effect, Differential
Supply Voltage: 3.1V~3.5V
Frequency: DC~18kHz
Sensing Current: 50A
8-PowerTDFN Package
TLI4970D050T4XUMA1 Applications
There are a lot of Infineon Technologies TLI4970D050T4XUMA1 Current Sensors applications.
Power Supplies for welding applications
AC variable speed drives
Battery supplied applications
Mobile applications
Industrial Monitoring and Control Systems
DC and AC power monitoring
Static converters for for DC motor drives
Battery chargers and systems
Electrical drives
Monitor Motor Operation
