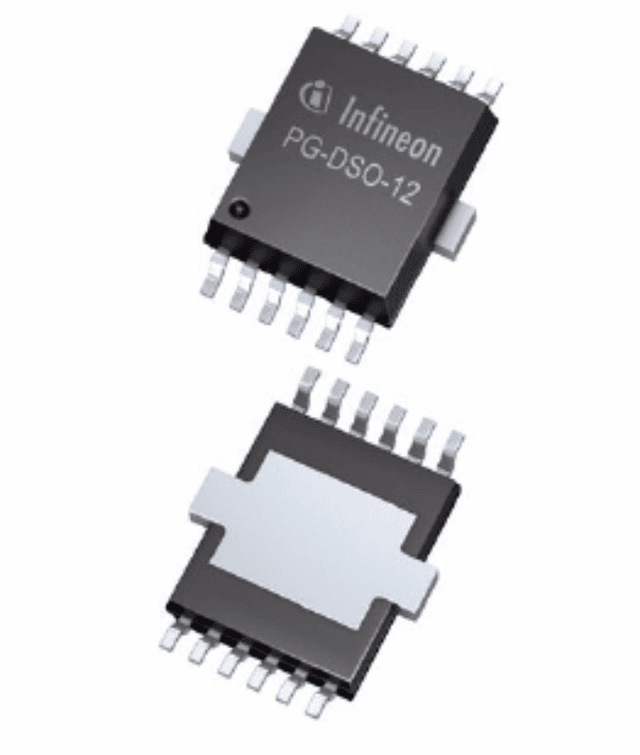

INFINEON TLE4473GV53AUMA2

Manufacturer No:

TLE4473GV53AUMA2

Manufacturer:

INFINEON

Package:

12-BSOP (0.295, 7.50mm Width) Exposed Pad

Description:

Inhibit, Reset, Watchdog Fixed 1mm PMIC Automotive, AEC-Q100, OPTIREG™ Series 12-BSOP (0.295, 7.50mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TLE4473GV53AUMA2 information

INFINEON TLE4473GV53AUMA2 technical specifications, attributes, parameters and parts with similar specifications to INFINEON TLE4473GV53AUMA2.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
12-BSOP (0.295, 7.50mm Width) Exposed Pad

Number of Pins
12

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100, OPTIREG™

Published
2008

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
12

ECCN Code
EAR99

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Terminal Pitch
1mm

Current - Supply (Max)
20mA

Number of Outputs
2

Output Voltage
3.3V

Output Type
Fixed

Max Output Current
180mA

Max Supply Voltage
42V

Output Configuration
Positive

Quiescent Current
250μA

Control Features
Inhibit, Reset, Watchdog

Accuracy
3 %

Watchdog Timer
Yes

Output Voltage 1
3.3V

Voltage - Output (Min/Fixed)
3.3V 5V

Number of Regulators
2

Min Input Voltage
5.6V

Protection Features
Over Current, Over Temperature, Short Circuit, Transient Voltage

Current - Quiescent (Iq)
265μA

Voltage Dropout (Max)
- 0.6V @ 100mA

Halogen Free
Halogen Free

PSRR
65dB (100Hz), 65dB (100Hz)

Dropout Voltage
300mV

Min Current Limit
200mA

Nominal Output Voltage
3.3V

Output Voltage 2
5V

Length
7.5mm

Width
6.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for INFINEON TLE4473GV53AUMA2.

TLE4473GV53AUMA2 Overview

An Tape & Reel (TR) case is included with the delivery. There is a 12-BSOP (0.295, 7.50mm Width) Exposed Pad case with the integrated voltage regulator. There are 12 terminations on the battery regulator IC chip and each of them has its own function. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 2 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~150°C TJ degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 300mA 180mAmp current output on this voltage regulator IC. In order to ensure prompt, adequate, and prompt performance, this regulator has 2 outputs in total. In terms of its dropout voltage, it is 10 volts. There are 12 pins on the chip. In order to meet the operating requirements of the regulator, its maximal output current reaches 180mA. It operates in the 250μA Quiescent Current state. This regulator IC is a part of the Automotive, AEC-Q100, OPTIREG™ Series. The top supply voltage is 42V volts.

TLE4473GV53AUMA2 Features

300mV dropout voltage

TLE4473GV53AUMA2 Applications

There are a lot of Infineon Technologies
TLE4473GV53AUMA2 Linear Voltage Regulators applications.

Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
DVD and CD-ROM drive
