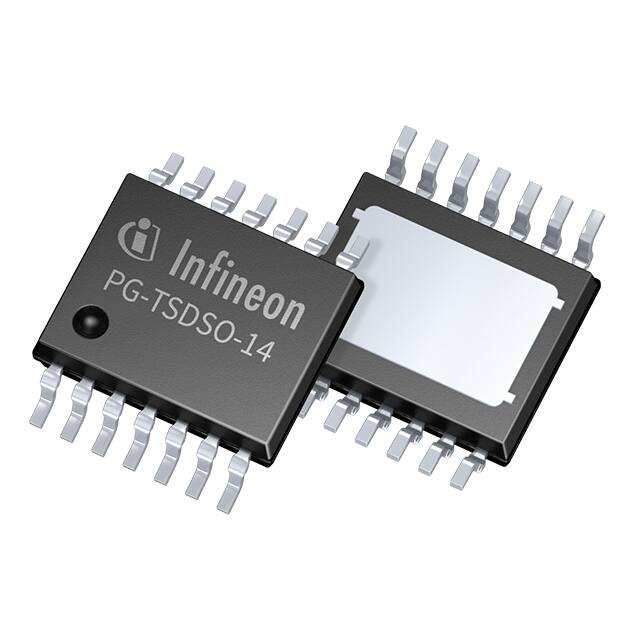

INFINEON TLD21413EPXUMA1

Manufacturer No:

TLD21413EPXUMA1

Manufacturer:

INFINEON

Package:

14-TSSOP (0.154, 3.90mm Width) Exposed Pad

Description:

PMIC Automotive, AEC-Q100, LITIX? Series 14-TSSOP (0.154, 3.90mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TLD21413EPXUMA1 information

INFINEON TLD21413EPXUMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON TLD21413EPXUMA1.

Type
Parameter

Factory Lead Time
18 Weeks

Mounting Type
Surface Mount

Package / Case
14-TSSOP (0.154, 3.90mm Width) Exposed Pad

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100, LITIX?

Part Status
Active

Moisture Sensitivity Level (MSL)
2A (4 Weeks)

Type
Linear

Applications
Automotive

Number of Outputs
3

Current - Output / Channel
60mA

Internal Switch(s)
Yes

Dimming
PWM

Voltage - Supply (Max)
40V

Voltage - Supply (Min)
5.5V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON TLD21413EPXUMA1.

Datasheets:

infineontechnologies-tld21413epxuma1-datasheets-9580.pdf

PCN Packaging:

infineontechnologies-tle4241gmxuma1-pcnpackaging-0830.pdf

TLD21413EPXUMA1 Description

The LITIX? Basic+ TLD21413EPXUMA1 is a triple channel high-side driver IC with integrated output stages. It is designed to control LEDs with a current of up to 80 mA. In typical automotive applications, the device is capable of driving 3 red LEDs per chain (total 9 LEDs) with a current up to 60 mA and even above, if not limited by the overall system thermal properties. Practically, the output current is controlled by an external resistor or reference source, independently from load and supply voltage changes.

TLD21413EPXUMA1 Features

Triple channel device with integrated and protected output stages (current sources), optimized to drive LEDs as an additional low-cost current source

High output current (up to 80 mA) per channel

Very low current consumption in sleep mode

Very low output leakage when the channel is ?off?

Low current consumption during fault

Overload protection

Wide temperature range: -40°C < TJ < 150°C

Output current control via an external low-power resistor

Green product (RoHS compliant)

TLD21413EPXUMA1 Applications

Turn indicators

Position, fog, rear lights, and side markers

Animated light functions like wiping indicators and ?welcome/goodbye? functions

Day Running Light

Interior lighting functions like ambient lighting (including RGB color control), illumination, and dashboard lighting

LED indicators for industrial applications and instrumentation
