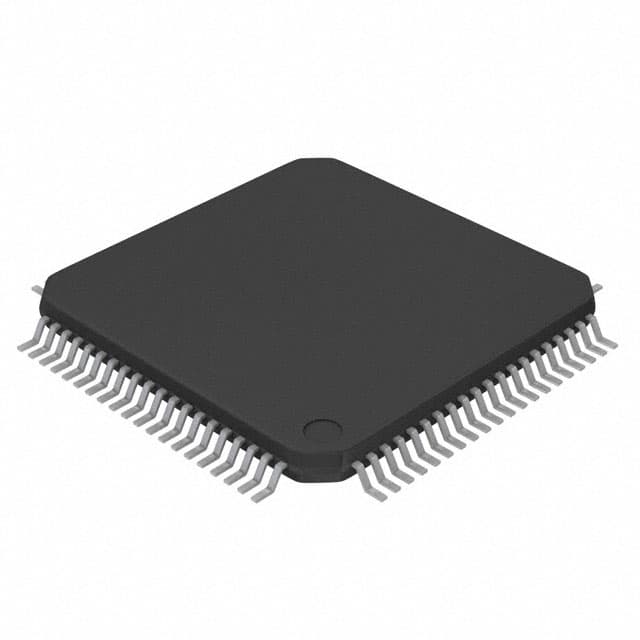

TI TL16C554IPN

Manufacturer No:

TL16C554IPN

Manufacturer:

Package:

80-LQFP

Description:

5V V 12mm mm Interface - UARTs (Universal Asynchronous Receiver Transmitter) 12mm mm CMOS 80 260 80

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TL16C554IPN information

TI TL16C554IPN technical specifications, attributes, parameters and parts with similar specifications to TI TL16C554IPN.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
80-LQFP

Number of Pins
80

Weight
465.697616mg

Packaging
Tray

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
80

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.31.00.01

Subcategory
Serial IO/Communication Controllers

Technology
CMOS

Voltage - Supply
4.75V~5.25V

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
5V

Base Part Number
TL16C554

Pin Count
80

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Number of Channels
4, QUART

Memory Size
16B

Operating Supply Current
50mA

Nominal Supply Current
50mA

Max Supply Current
50mA

uPs/uCs/Peripheral ICs Type
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

Clock Frequency
16MHz

Boundary Scan
NO

Low Power Mode
NO

Data Rate (Max)
1Mbps

Number of Serial I/Os
4

Data Transfer Rate-Max
0.125 MBps

Communication Protocol
ASYNC, BIT

Data Encoding/Decoding Method
NRZ

FIFO's
16 Byte

With False Start Bit Detection
Yes

Height
1.6mm

Length
12mm

Download datasheets and manufacturer documentation for TI TL16C554IPN.

PCN Assembly/Origin:

texasinstruments-lm9833ccvjdnopb-pcnassemblyorigin-6843.pdf

Datasheets:

texasinstruments-tl16c554ipn-datasheets-7559.pdf

texasinstruments-tl16c554ipn-datasheets-7560.pdf

texasinstruments-tl16c554ipn-datasheets-7561.pdf

texasinstruments-tl16c554ipn-datasheets-7562.pdf

TL16C554IPN Overview

The package 80-LQFP offers the best value.Transmission is done through 4, QUART channels.Tray is adopted for packaging.As its uP/uC/Peripheral ICs type, SERIAL IO/COMMUNICATION CONTROLLER, SERIAL is used.In its configuration, 80 terminations are used.In order to operate it, a supply voltage of 5V is required.The current status of this electronic part is Active.As a means of transferring data, there are 4 serial I/Os.Through Surface Mount, it can be mounted.With a supply voltage of 4.75V~5.25V, it operates.In this case, the electronic device is a type of integrated circuit with 80 pins.This IC measures its clock frequency at 16MHz.This item is classified as Serial IO/Communication Controllers due to a number of similarities.UART is important to keep the operating temperature below -40°C to ensure a long working period.To ensure long-term operation, the operating temperature should not exceed 85°C.The 80 pins form the basis for its configuration.Using Surface Mount, it is mounted.The use of 5V power supplies is efficient and reliable for electronic designers.Its high-efficiency operation depends on a supply voltage of 5V.A base part number of TL16C554 is used for this product.Supply currents up to 50mA are allowed.Designed for specific applications, it operates with a current of 50mA.There is a lot of information stored in the memory with a size of 16B.

TL16C554IPN Features

4 serial I/Os
Clock frequency of 16MHz
Power supplies of 5V
Operating supply voltage of 5V

TL16C554IPN Applications

There are a lot of Texas Instruments
TL16C554IPN UARTs applications.

Cellular data devices
Industrial computing
Communications equipment
White goods
Battery Operated Electronics
Handheld Terminal
Personal Digital Assistants
Cellular Phones DataPort
Wireless Infrared Data Communications Systems
Handheld Terminals and Tablets
