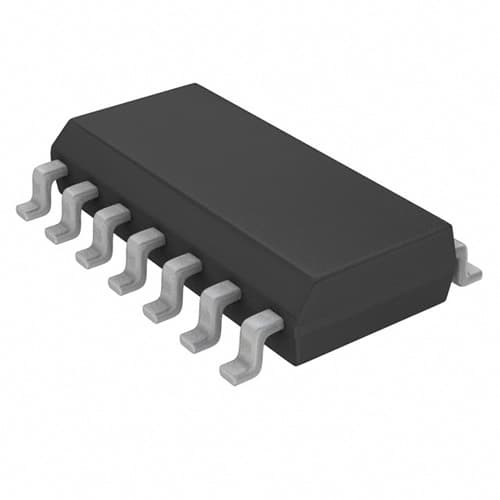

TI THS3115IDG4

Manufacturer No:

THS3115IDG4

Manufacturer:

Package:

Description:

1 Channels 270mA per Channel 3μA 56 dB Instrumentational OP Amps 14 Pins D

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

THS3115IDG4 information

TI THS3115IDG4 technical specifications, attributes, parameters and parts with similar specifications to TI THS3115IDG4.

Type
Parameter

Package / Case
D

Surface Mount
YES

Number of Pins
14

Weight
133.412856mg

Packaging
Rail/Tube

JESD-609 Code
e4

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
14

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ALSO OPERATES WITH 10 TO 30V SINGLE SUPPLY

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Pin Count
14

Number of Elements
2

Number of Channels
1

Max Supply Voltage
30V

Min Supply Voltage
10V

Power Dissipation-Max
1.88W

Operating Supply Current
4.9mA

Power Dissipation
1.88W

Common Mode Rejection Ratio
56 dB

Current - Input Bias
3μA

Output Current per Channel
270mA

Input Offset Voltage (Vos)
3mV

Bandwidth
110000 kHz

Gain Bandwidth Product
103MHz

Power Supply Rejection Ratio (PSRR)
53dB

Settling Time
50 ns

Max Dual Supply Voltage
15V

-3db Bandwidth
110MHz

Min Dual Supply Voltage
5V

Max I/O Voltage
8mV

Length
8.65mm

Height Seated (Max)
1.75mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI THS3115IDG4.

THS3115IDG4 Overview

There is a D case in which the instrumentation amplifier is packaged. A Rail/Tube case is used to deliver the buffer op amp. The number of terminations is approaching the 14 mark. The total number of pins on linear amplifier is 14. 14 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 3mV. It is possible to operate this buffer amplifier from a supply current of 4.9mA . Op amp ic has 1 channels. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 85°C, Instrumentation amplifier should not be used. There are 2 elements in total in this linear amplifier. The electrical part is capable of being powered by a voltage of under 30V, which means that it can be used with any voltage supply. As a rule of thumb, the supply voltage of the op amp should not be lower than 10V. As a general rule, you should conduct this electronic component under dual supply voltages of 15V volts. As an additional benefit of this buffer amplifier, please refer to the following: ALSO OPERATES WITH 10 TO 30V SINGLE SUPPLY.
