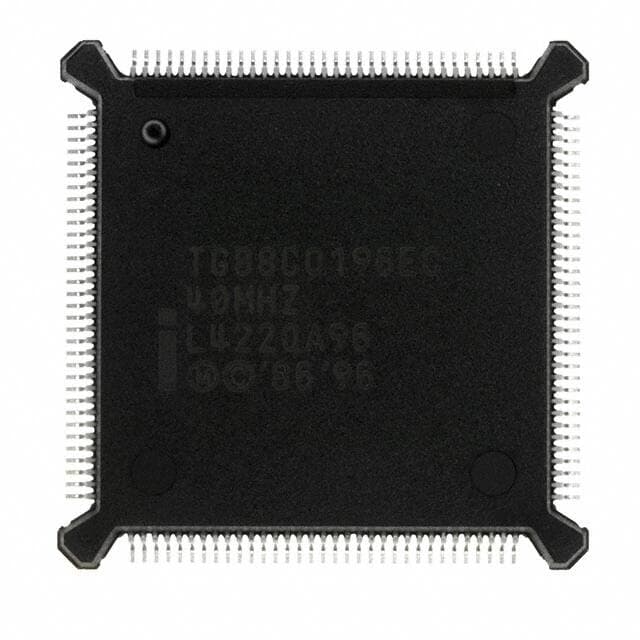

INTEL TG88CO196EC40

Manufacturer No:

TG88CO196EC40

Manufacturer:

INTEL

Package:

132-QFP

Description:

256KB 256K x 8 FLASH MCS 96 16-Bit Microcontroller MCS®96 Series 40MHz 132-QFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TG88CO196EC40 information

INTEL TG88CO196EC40 technical specifications, attributes, parameters and parts with similar specifications to INTEL TG88CO196EC40.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
132-QFP

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
MCS®96

Published
2004

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Frequency
40MHz

Interface
CAN

Memory Size
256kB

Oscillator Type
Internal

Number of I/O
59

RAM Size
4K x 8

Voltage - Supply (Vcc/Vdd)
4.75V~5.25V

Core Processor
MCS 96

Peripherals
WDT

Program Memory Type
FLASH

Core Size
16-Bit

Program Memory Size
256KB 256K x 8

Connectivity
CANbus, SIO, SSIO

Data Converter
A/D 16x10b

Access Time
40 μs

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for INTEL TG88CO196EC40.

ConflictMineralStatement:

intel-cnla6000pk5-conflictmineralstatement-0045.pdf

TG88CO196EC40 Overview

This Microcontroller comes in a 132-QFP package. This Microcontroller has 59 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 16-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in MCS®96 Series. The size of the program memory of Microcontroller is 256KB 256K x 8. MCU is powered by MCS 96 Core Processor. The part owns 256kB memory size. MCU's frequency is 40MHz.

TG88CO196EC40 Features

132-QFP package
Mounting type of Surface Mount

TG88CO196EC40 Applications

There are a lot of Intel
TG88CO196EC40 Microcontroller applications.

Automatic control
Equipment control
Instrument control
Toys
Robots
Radio
Television
Heater/Fan
Calculator
Kindle
