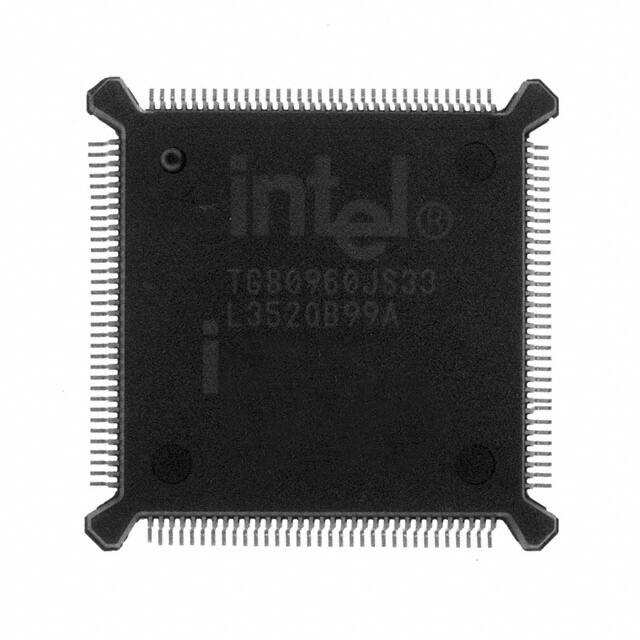

INTEL TG80960JS33
INTEL TG80960JS33

INTEL TG80960JS33

Manufacturer No:

TG80960JS33

Manufacturer:

INTEL

Package:

132-QFP

Description:

0.635mm 3.33.3/5V 32-bit Microprocessor i960 Series 33MHz 3.3V 132-QFP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TG80960JS33 information

INTEL TG80960JS33 technical specifications, attributes, parameters and parts with similar specifications to INTEL TG80960JS33.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • 132-QFP
  • Operating Temperature
  • 0°C~100°C TC
  • Packaging
  • Tray
  • Series
  • i960
  • Published
  • 2002
  • JESD-609 Code
  • e1
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 4 (72 Hours)
  • Number of Terminations
  • 132
  • ECCN Code
  • 3A991.A.2
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • HTS Code
  • 8542.31.00.01
  • Subcategory
  • Microprocessors
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.635mm
  • Frequency
  • 33MHz
  • Pin Count
  • 132
  • JESD-30 Code
  • S-PQFP-G132
  • Power Supplies
  • 3.33.3/5V
  • RAM Size
  • 1kB
  • uPs/uCs/Peripheral ICs Type
  • MICROPROCESSOR, RISC
  • Supply Current-Max
  • 240mA
  • Bit Size
  • 32
  • Access Time
  • 33 μs
  • Address Bus Width
  • 32
  • Boundary Scan
  • YES
  • Low Power Mode
  • YES
  • External Data Bus Width
  • 32
  • Format
  • FIXED POINT
  • Integrated Cache
  • YES
  • Voltage - I/O
  • 3.3V
  • Number of Cores/Bus Width
  • 1 Core 32-Bit
  • Graphics Acceleration
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INTEL TG80960JS33.

Datasheets:

ConflictMineralStatement:

TG80960JS33 Overview


The microprocessor is conveniently packaged in 132-QFP, making it easy to ship internationally. High reliability is provided by the advanced packaging method Tray. There are 1 Core 32-Bit cores/bus width on the CPU. Understand the operating temperature around 0°C~100°C TC. The i960 series contains it. I/O is run at 3.3V on this CPU. This is a MICROPROCESSOR, RISC for the uPs/uCs/Peripheral ICs type. Total terminations are 132. In the case of a 3.3V voltage supply, the embedded microprocessor should be turned on and run. A 32-Bit architecture is used. CPUs operate at 33MHz Hz. A typical Microprocessors embedded microprocessor. The external data bus width of this CPU is 32. The CPU microprocessor body is injected with 132 pins. Many applications use this CPU with Surface Mount mounted. Datasheets specify that the embedded microprocessor requires 3.33.3/5V power supplies. There is 3V voltage at the CPU core. RAM (Random Access Memory) is designed to be 1kB. The CPU can only be supplied with voltage up to 240mA.

TG80960JS33 Features


32-Bit Structure
1kB RAM


TG80960JS33 Applications


There are a lot of Intel
TG80960JS33 Microprocessor applications.


  • Automatic control
  • Equipment control
  • Instrument control
  • Consumer electronics products
  • Toys
  • Robots
  • Radio
  • Television
  • Heater/Fan
  • Calculator
