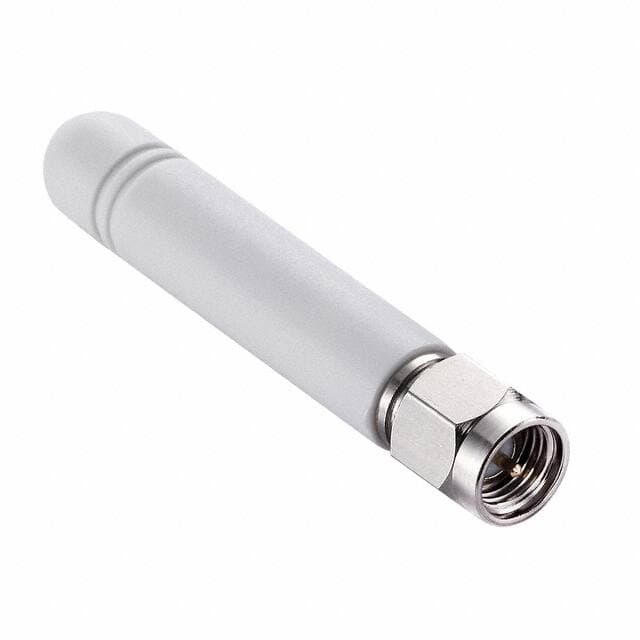

Taoglas Limited TG.22.0111W

Manufacturer No:

TG.22.0111W

Manufacturer:

Taoglas Limited

Package:

SMA

Description:

2 Bands Whip, Straight UHF 300MHz~1GHz UHF 1GHz~2GHz Connector Mount SMA Male 892MHz 1.9GHz 1.91dBi, 3.23dBi Bulk 1.929 49.00mm CDMA, GSM, UMTS, WCDMA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TG.22.0111W information

Taoglas Limited TG.22.0111W technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited TG.22.0111W.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Connector Mount

Package / Case
SMA

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male

Applications
CDMA, GSM, UMTS, WCDMA

Power Rating
20W

Max Power Dissipation
20W

Frequency
2.2GHz

Impedance
50Ohm

Power - Max
20W

Gain
1.91dBi, 3.23dBi

Max Frequency
2.17GHz

Frequency Range
824MHz~960MHz 1.71GHz~1.99GHz

RF Family/Standard
Cellular

Antenna Type
Whip, Straight

VSWR
3.5

Number of Bands
2

Frequency Group
UHF 300MHz~1GHz UHF 1GHz~2GHz

Frequency (Center/Band)
892MHz 1.9GHz

Return Loss
-5dB

Diameter
7.8mm

Length
48mm

Height (Max)
1.929 49.00mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited TG.22.0111W.

TG.22.0111W Overview

The Connector Mount makes it ideal for general RF Antennas.Packaged in solid enclosures, this RF modulator has a Bulk rating.Shipping overseas is convenient due to the RF ic's packing in SMA.

TG.22.0111W Features

With Connector Mount

TG.22.0111W Applications

There are a lot of Taoglas Limited
TG.22.0111W RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
