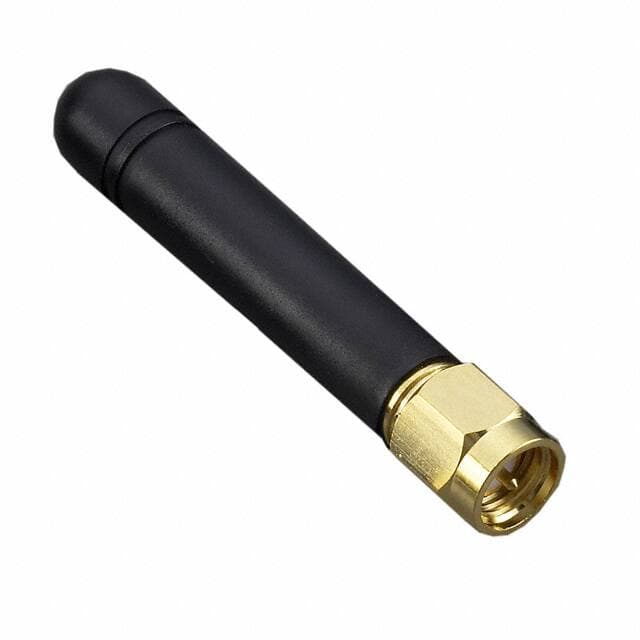

Taoglas Limited TG.22.0111

Manufacturer No:

TG.22.0111

Manufacturer:

Taoglas Limited

Package:

SMA

Description:

5 Bands Whip, Straight Wide B Connector Mount SMA Male 850MHz 900MHz 1.8GHz 1.9GHz 2.1GHz 1.42dBi, 1.91dBi, 2.51dBi, 3.23dBi, 2.89dBi Bulk 1.898 48.20mm CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TG.22.0111 information

Taoglas Limited TG.22.0111 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited TG.22.0111.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Connector Mount

Package / Case
SMA

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male

Applications
CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA

Power Rating
20W

Max Power Dissipation
20W

Frequency
2.17GHz

Impedance
50Ohm

Power - Max
20W

Gain
1.42dBi, 1.91dBi, 2.51dBi, 3.23dBi, 2.89dBi

Max Frequency
2.17GHz

Frequency Range
824MHz~960MHz 1.71GHz~2.17GHz

RF Family/Standard
Cellular

Antenna Type
Whip, Straight

VSWR
3.5

Number of Bands
5

Frequency Group
Wide B

Frequency (Center/Band)
850MHz 900MHz 1.8GHz 1.9GHz 2.1GHz

Return Loss
-5dB

Diameter
7.8mm

Length
48mm

Height (Max)
1.898 48.20mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Taoglas Limited TG.22.0111.

TG.22.0111 Overview

The Connector Mount value makes it suitable for general RF Antennas.A solid enclosure of Bulk surrounds RF modulator.Shipping overseas is convenient with the RF ic packed in SMA.

TG.22.0111 Features

With Connector Mount

TG.22.0111 Applications

There are a lot of Taoglas Limited
TG.22.0111 RF Antennas applications.

Solar flares
Static electricity
Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
