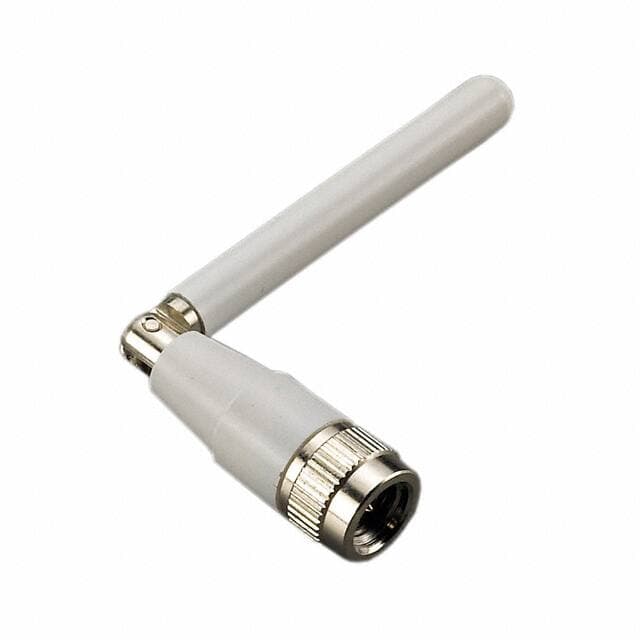

Taoglas Limited TG.09.0113W
Manufacturer No:
TG.09.0113W
Manufacturer:
Package:
SMA
Description:
2 Bands Whip, Tilt UHF 300MHz~1GHz UHF 1GHz~2GHz Connector Mount SMA Male 892MHz 1.9GHz 2dBi, -0.1dBi Bulk 2.835 72.00mm CDMA, GSM, UMTS
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
TG.09.0113W information
Taoglas Limited TG.09.0113W technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited TG.09.0113W.
- Type
- Parameter
- Factory Lead Time
- 8 Weeks
- Mounting Type
- Connector Mount
- Package / Case
- SMA
- Packaging
- Bulk
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- SMA Male
- Applications
- CDMA, GSM, UMTS
- Power Rating
- 10W
- Max Power Dissipation
- 10W
- Frequency
- 2.1GHz
- Impedance
- 50Ohm
- Power - Max
- 10W
- Gain
- 2dBi, -0.1dBi
- Max Frequency
- 2.17GHz
- Frequency Range
- 824MHz~960MHz 1.71GHz~2.17GHz
- RF Family/Standard
- Cellular
- Antenna Type
- Whip, Tilt
- Number of Bands
- 2
- Frequency Group
- UHF 300MHz~1GHz UHF 1GHz~2GHz
- Frequency (Center/Band)
- 892MHz 1.9GHz
- Diameter
- 10mm
- Height
- 72.009mm
- Length
- 72mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Taoglas Limited TG.09.0113W.
Datasheets:
Environmental Information:
PCN Packaging:
TG.09.0113W Overview
A generalization of RF Antennas can be made using Connector Mount.Packaging is solid wRF modulatorh a Bulk enclosure.Shipped in SMA, the RF ic is easy to ship overseas.
TG.09.0113W Features
With Connector Mount
TG.09.0113W Applications
There are a lot of Taoglas Limited
TG.09.0113W RF Antennas applications.
- Satellites
- Transmission
- Cellphones
- Laptops
- Marine Navigation
- Avionics
- GPS
- GLONASS
- BeiDou
- Galileo
