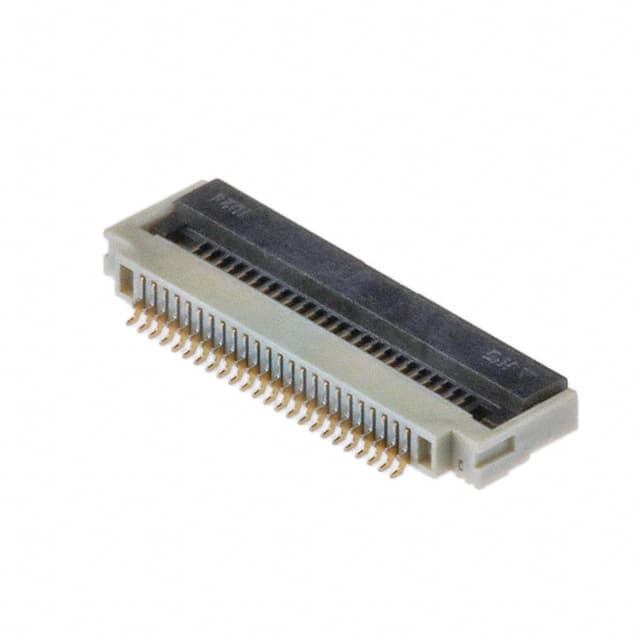

HIROSE TF31-24S-0.5SH(800)
Manufacturer No:
TF31-24S-0.5SH(800)
Manufacturer:
Package:
Description:
CONN FFC BOTTOM 24POS 0.5MM R/A.24 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
TF31-24S-0.5SH(800) information
HIROSE TF31-24S-0.5SH(800) technical specifications, attributes, parameters and parts with similar specifications to HIROSE TF31-24S-0.5SH(800).
- Type
- Parameter
- Category
- Connectors, Interconnects
- Manufacturer
- Hirose Electric Co Ltd
- Series
- TF31
- Packaging
- Tape & Reel (TR), Cut Tape (CT)
- Part Status
- Active
- Manufacturer Lead Time
- 12 Weeks
- Actuator Material
- Liquid Crystal Polymer (LCP)
- Cable End Type
- Tabbed
- Connector/Contact Type
- Contacts, Bottom
- Contact Finish
- Gold
- Contact Material
- Phosphor Bronze
- FFC, FCB Thickness
- 0.30mm
- Features
- Zero Insertion Force (ZIF)
- Flat Flex Type
- FFC, FPC
- Height Above Board
- 0.079" (2.00mm)
- Housing Material
- Liquid Crystal Polymer (LCP)
- Locking Feature
- Flip Lock
- Material Flammability Rating
- UL94 V-0
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 24
- Operating Temperature
- -40°C ~ 105°C
- Pitch
- 0.020" (0.50mm)
- Termination
- Solder
- Voltage Rating
- 50V
- HtsusCode
- 8536.69.4051
- MoistureSensitivityLevel
- 1 (Unlimited)
- ReachStatus
- REACH Unknown
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for HIROSE TF31-24S-0.5SH(800).
Datasheets:
No product details available
