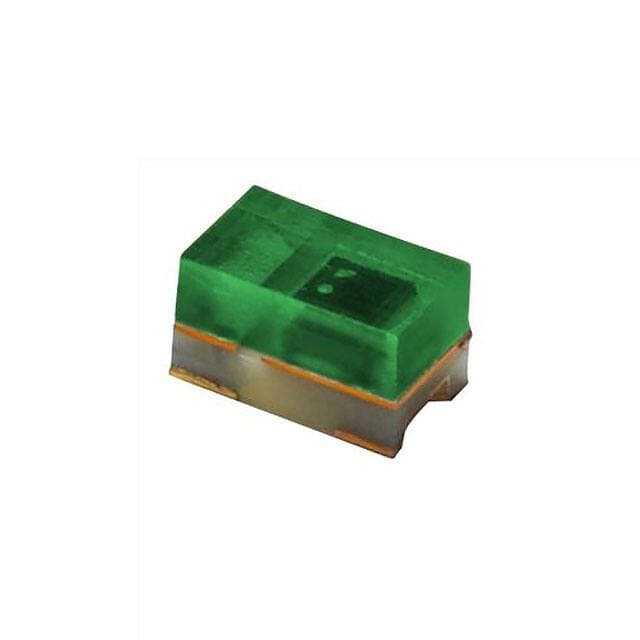

TEMD6200FX01 information

VISHAY TEMD6200FX01 technical specifications, attributes, parameters and parts with similar specifications to VISHAY TEMD6200FX01.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • PCB, Surface Mount
  • Mounting Type
  • Surface Mount
  • Number of Pins
  • 2
  • Shape
  • SQUARE
  • Operating Temperature
  • -40°C~100°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • Automotive, AEC-Q101
  • Published
  • 2008
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Additional Feature
  • HIGH SENSITIVITY
  • HTS Code
  • 8541.40.60.50
  • Subcategory
  • Photo Diodes
  • Max Power Dissipation
  • 100mW
  • Number of Functions
  • 1
  • Case Code (Metric)
  • 2012
  • Case Code (Imperial)
  • 0805
  • Configuration
  • SINGLE
  • Diode Type
  • PIN
  • Power Dissipation
  • 100mW
  • Viewing Angle
  • 120°
  • Rise Time
  • 150ns
  • Max Reverse Voltage (DC)
  • 16V
  • Reverse Breakdown Voltage
  • 16V
  • Wavelength
  • 540nm
  • Max Junction Temperature (Tj)
  • 100°C
  • Ambient Temperature Range High
  • 100°C
  • Dark Current
  • 100pA
  • Spectral Range
  • 430nm ~ 610nm
  • Active Area
  • 0.27mm2
  • Infrared Range
  • NO
  • Light Current-Nom
  • 0.00004mA
  • Height
  • 950?m
  • Length
  • 2mm
  • Width
  • 1.25mm
  • REACH SVHC
  • Unknown
  • Radiation Hardening
  • No
  • RoHS Status
  • ROHS3 Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for VISHAY TEMD6200FX01.

Datasheets:

RohsStatement:

TEMD6200FX01 Overview


The Tape & Reel (TR) protects these photodiodes from damage. A continuous reverse-bias voltage of 16V should be maintained for the photodiodes. 2 pins are present on the photodiodes. During a circuit, the photodiodes could release 100mW heat. Photodiodes should have a reverse anode voltage of 16V. Generally, the maximum amount of heat released by photodiodes is 100mW. Despite the absence of light, photodiodes make 100pA current.

TEMD6200FX01 Features


Moisture Sensitivity Level (MSL): 3 (168 Hours)
Operating Temperature: -40°C~100°C
Packaging: Tape & Reel (TR)
Diode Type: PIN
Mount: PCB, Surface Mount
Spectral Range: 430nm ~ 610nm
Viewing Angle: 120°


TEMD6200FX01 Applications


There are a lot of Vishay Semiconductor Opto Division
TEMD6200FX01 Photodiodes applications.


  • Photo interrupters
  • Shaft encoders
  • Electronic Equipment
  • Industrial Automation
  • Machine Controls
  • Light Barriers
  • Vision Controls
  • Measurement Levelling
  • High speed photo detectors
  • Health Monitoring
