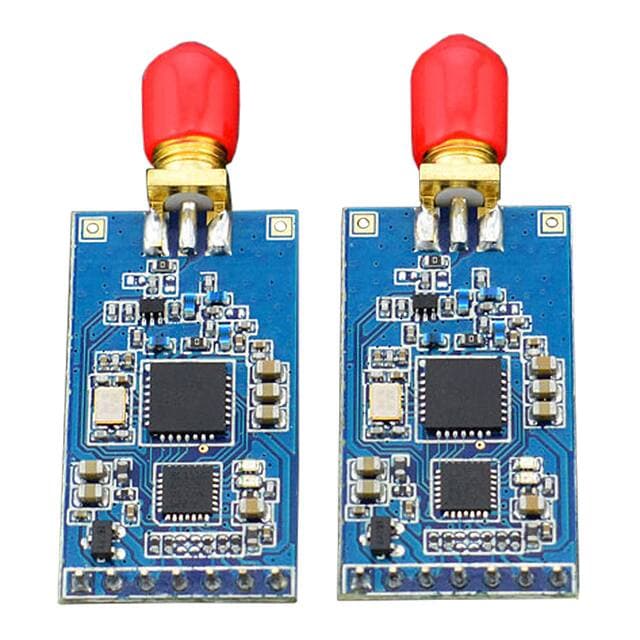

DFRobot TEL0116

Manufacturer No:

TEL0116

Manufacturer:

DFRobot

Package:

7-SIP Module

Description:

433MHz -40°C~80°C 3.4V~5.5V Serial TTL Antenna Not Included, SMA 9.6kbps 20dBm LoRa? -137dBm 7-SIP Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TEL0116 information

DFRobot TEL0116 technical specifications, attributes, parameters and parts with similar specifications to DFRobot TEL0116.

Type
Parameter

Factory Lead Time
4 Weeks

Mounting Type
Through Hole

Package / Case
7-SIP Module

Operating Temperature
-40°C~80°C

Published
2018

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
3.4V~5.5V

Frequency
433MHz

Data Rate
9.6kbps

Utilized IC / Part
SX1276

Protocol
LoRa?

Power - Output
20dBm

Antenna Type
Antenna Not Included, SMA

Sensitivity
-137dBm

Serial Interfaces
Serial TTL

Current - Receiving
15.2mA

Current - Transmitting
120mA

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for DFRobot TEL0116.

TEL0116 Overview

For RF Transceiver' mounting, it uses the Through Hole method.Transceivers should be operated at -40°C~80°C temperature while operating.There is 3.4V~5.5V voltage limit on the RF Transceiver.A RF Transceiver Module operates at a frequency of 433MHz.

TEL0116 Features

Through Hole
3.4V~5.5V volts

TEL0116 Applications

There are a lot of DFRobot
TEL0116 RF Transceiver Modules applications.

Low Noise Amplifier (LNA)
Transmit
Receive
Switch
Power management
Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
