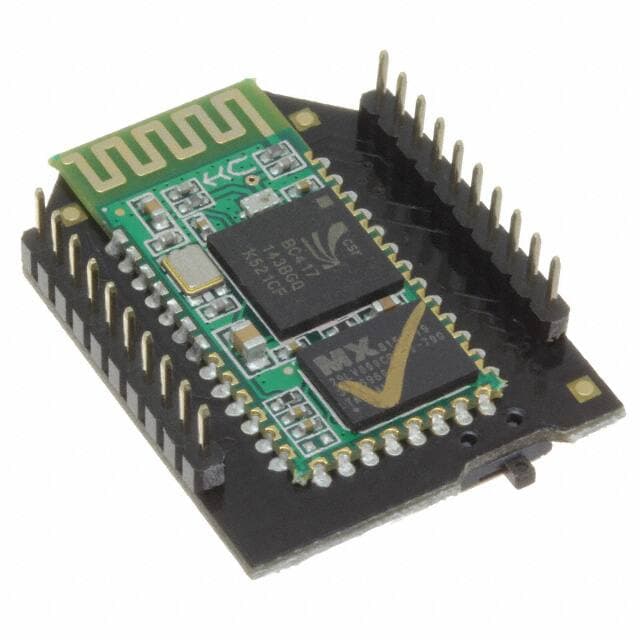

DFRobot TEL0023

Manufacturer No:

TEL0023

Manufacturer:

DFRobot

Package:

Module

Description:

2.4GHz Bluetooth, General ISM > 1GHz -20°C~55°C 3.3V Bulk Integrated, Trace 2.1Mbps 4dBm Bluetooth v2.0 +EDR -84dBm Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TEL0023 information

DFRobot TEL0023 technical specifications, attributes, parameters and parts with similar specifications to DFRobot TEL0023.

Type
Parameter

Factory Lead Time
4 Weeks

Mounting Type
Surface Mount

Package / Case
Module

Operating Temperature
-20°C~55°C

Packaging
Bulk

Published
2011

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
3.3V

Frequency
2.4GHz

Data Rate
2.1Mbps

Utilized IC / Part
nRF24LU1

Protocol
Bluetooth v2.0 +EDR

Power - Output
4dBm

RF Family/Standard
Bluetooth, General ISM > 1GHz

Antenna Type
Integrated, Trace

Sensitivity
-84dBm

Modulation
GFSK

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for DFRobot TEL0023.

TEL0023 Overview

RF Transceiver' mounting is done according to the Surface Mount method.There is an optimized performance in this RF Transceiver module because it utilizes the Bulk package.Operating at -20°C~55°C is the recommended temperature for Transceiver's operation.RF Transceivers with 3.3V voltage capabilities can be used.2.4GHz is the frequency of the RF Transceiver Module.

TEL0023 Features

Surface Mount
Bulk package
3.3V volts

TEL0023 Applications

There are a lot of DFRobot
TEL0023 RF Transceiver Modules applications.

Receive
Switch
Power management
Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
LED Lighting
Utility and Smart Energy
