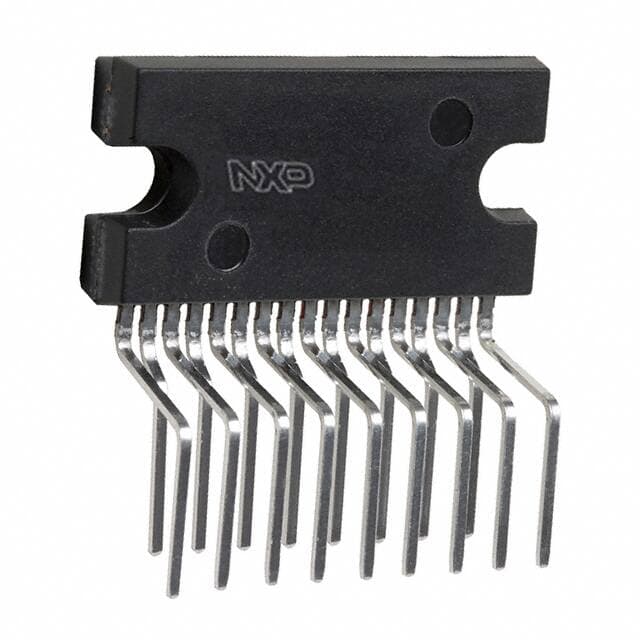

NXP TDA8561Q/N3S,112

Manufacturer No:

TDA8561Q/N3S,112

Manufacturer:

NXP

Package:

17-SIP Formed Leads

Description:

20 kHz kHz Audio Amplifiers 4.4mm mm 18V V 17-SIP Formed Leads

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TDA8561Q/N3S,112 information

NXP TDA8561Q/N3S,112 technical specifications, attributes, parameters and parts with similar specifications to NXP TDA8561Q/N3S,112.

Type
Parameter

Factory Lead Time
13 Weeks

Mounting Type
Through Hole

Package / Case
17-SIP Formed Leads

Surface Mount
NO

Operating Temperature
-40°C~85°C TA

Packaging
Tube

Published
1999

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
17

Type
Class B

Voltage - Supply
6V~18V

Terminal Position
ZIG-ZAG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
TDA8561

Pin Count
17

JESD-30 Code
R-PZIP-T17

Output Type
2-Channel (Stereo) or 4-Channel (Quad)

Supply Voltage-Max (Vsup)
18V

Supply Voltage-Min (Vsup)
6V

Number of Channels
4

Bandwidth
20 kHz

Gain
20 dB

Max Output Power x Channels @ Load
24W x 2 @ 4 Ω; 12W x 4 @ 2 Ω

Harmonic Distortion
10%

Features
Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby

Length
23.8mm

Height Seated (Max)
17mm

Width
4.4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP TDA8561Q/N3S,112.

Datasheets:

nxpusainc-tda8561qn3s112-datasheets-1093.pdf

Environmental Information:

nxpusainc-tef6657hnv102k-environmentalinformation-9391.pdf

TDA8561Q/N3S,112 Overview

In 17-SIP Formed Leads is embedded this device.Chips should be packaged in Tube cases.Transmission lines can be terminated with 17 terminations, which have devices that match the line's characteristic impedance.2-Channel (Stereo) or 4-Channel (Quad) is used for its output.In this case, it is an electrical device of type Class B .The electronic part is positioned in the way of Through Hole .This electrical device has a 6V~18V supply voltage.Currently, the device has only 4 channels.No temperature higher than -40°C~85°C TA should be used for operations.This device has 17 pins.Amp parts is part of the TDA8561 family.Amp parts is important to keep the supply voltage (Vsup) above 6V so that the device functions normally.Vsup reaches 18V at the maximum.

TDA8561Q/N3S,112 Features

17-SIP Formed Leads package
17 pin count
TDA8561 family

TDA8561Q/N3S,112 Applications

There are a lot of NXP USA Inc.
TDA8561Q/N3S,112 audio amplifiers applications.

Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video and image computer boards
Medical instruments
Television broadcasting equipment
Displayers for aircraft and air transportation control systems
