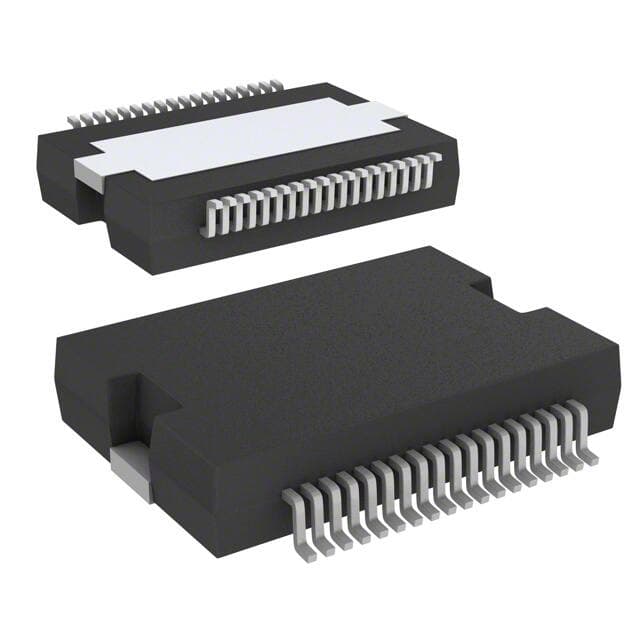

ST TDA7575BPD

Manufacturer No:

TDA7575BPD

Manufacturer:

Package:

PowerSO-36 Exposed Top Pad

Description:

22 kHz kHz 150W W Audio Amplifiers 11mm mm 86W W 18V V 36 pins PowerSO-36 Exposed Top Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TDA7575BPD information

ST TDA7575BPD technical specifications, attributes, parameters and parts with similar specifications to ST TDA7575BPD.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
PowerSO-36 Exposed Top Pad

Number of Pins
36

Operating Temperature
-55°C~150°C TJ

Packaging
Tube

JESD-609 Code
e3

Feature
Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Standby

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
36

ECCN Code
EAR99

Type
Class AB

Terminal Finish
Matte Tin (Sn) - annealed

HTS Code
8542.33.00.01

Subcategory
Audio/Video Amplifiers

Max Power Dissipation
86W

Technology
BCDMOS

Voltage - Supply
8V~18V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
245

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
TDA7575

Pin Count
36

Output Type
1-Channel (Mono) or 2-Channel (Stereo)

Operating Supply Voltage
15V

Supply Voltage-Max (Vsup)
18V

Power Supplies
14.4V

Supply Voltage-Min (Vsup)
8V

Number of Channels
2

Power Dissipation
86W

Supply Current-Max
200mA

Output Power
150W

Common Mode Rejection Ratio
56 dB

Supply Type
Single

Input Offset Voltage (Vos)
45mV

Bandwidth
22 kHz

Voltage Gain
26dB

Gain
26 dB

Max Output Power
150W

Max Output Power x Channels @ Load
150W x 1 @ 1 ?; 75W x 2 @ 2 ?

Harmonic Distortion
10%

Length
15.9mm

Download datasheets and manufacturer documentation for ST TDA7575BPD.

Datasheets:

stmicroelectronics-tda7575b-datasheets-6451.pdf

TDA7575BPD Overview

There is a device embedded in PowerSO-36 Exposed Top Pad .Amp parts is recommended that the chip be packaged in a Tube case.Amp parts is possible to terminate a transmission line wAmp partsh a device matching Amp partss characteristic impedance, referred to as a 36 termination.1-Channel (Mono) or 2-Channel (Stereo) is the output configured for it.The device is of type Class AB .The 36 pins are pronged contacts which are part of a signal interface in a computer or other communication device.Electronic parts are mounted in the way of Surface Mount .Amp parts is powered by a voltage of 8V~18V volts.2 channels are present on the device.Operation can be ensured by Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Standby .A temperature greater than -55°C~150°C TJ should not be used.There are 36 pins present on this device.This chip belongs to Audio/Video Amplifiers .This is a member of the TDA7575 family.The electronic part is mounted in the way of Surface Mount .As a result of the limAmp partsations of this electronic part, Amp parts has a maximum output power of 150W kWh per hour.To ensure normal operation, the supply voltage (Vsup) must be maintained above 8V .The maximum supply voltage (Vsup) is reached at 18V .This electronic part has a Single supply type.The device is powered by a voltage of 14.4V volts.A maximum supply current of 200mA is achieved.

TDA7575BPD Features

PowerSO-36 Exposed Top Pad package
36 pin count
TDA7575 family
150W kWh per hour
