ST TDA7569BLV

Manufacturer No:

TDA7569BLV

Manufacturer:

Package:

27-Flexiwatt (Formed Leads)

Description:

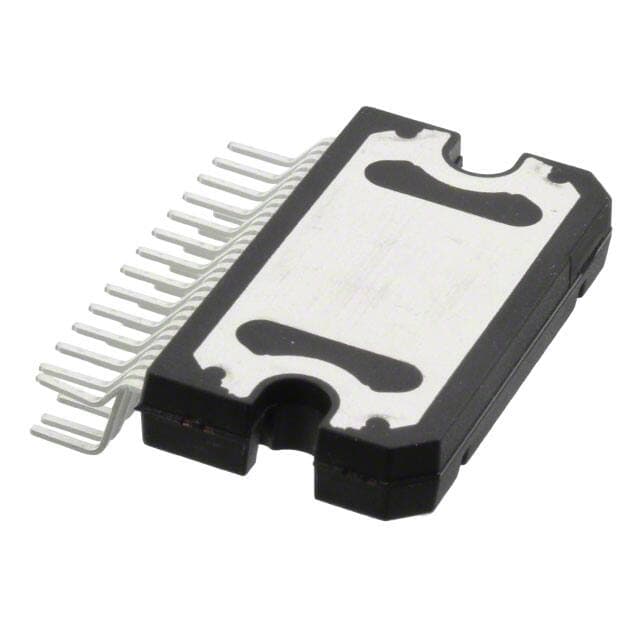

50W W Audio Amplifiers 27 pins 27-Flexiwatt (Formed Leads)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TDA7569BLV information

ST TDA7569BLV technical specifications, attributes, parameters and parts with similar specifications to ST TDA7569BLV.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 8 months ago)

Factory Lead Time
13 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
27-Flexiwatt (Formed Leads)

Number of Pins
27

Operating Temperature
-40°C~105°C TA

Packaging
Tube

JESD-609 Code
e3

Feature
Mute, Short-Circuit and Thermal Protection

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Type
Class AB

Terminal Finish
Tin (Sn)

HTS Code
8542.33.00.01

Subcategory
Audio/Video Amplifiers

Technology
BCDMOS

Voltage - Supply
6V~18V

Terminal Position
ZIG-ZAG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
4

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
TDA7569

Qualification Status
Not Qualified

Output Type
4-Channel (Quad)

Power Supplies
14.4V

Supply Current-Max
250mA

Max Output Power
50W

Max Output Power x Channels @ Load
50W x 4 @ 4 ?

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST TDA7569BLV.

Datasheets:

stmicroelectronics-tda7569blv-datasheets-7461.pdf

TDA7569BLV Overview

The device is embedded in 27-Flexiwatt (Formed Leads) .There is a package in the form of Tube .In addition, 16 terminations are used, which entail the termination of a transmission line with a device whose characteristic impedance matches the line's.Amp parts is configured to produce 4-Channel (Quad) as Amp partss output.Amp parts is an electrical device of type Class AB .The computer or other communication device has 27 pins, which are pronged contacts.The electronic component is mounted in the way of Through Hole .This electrical device operates at 6V~18V volts.During operation, Mute, Short-Circuit and Thermal Protection can be ensured.During operation, the temperature should not exceed -40°C~105°C TA .Amp parts is part of Audio/Video Amplifiers .Amp parts is a member of the TDA7569 family.The electronic component is mounted in the way of Through Hole .There is a maximum output power of 50W kWh per hour from this electronic component.As a result, it operates on a 14.4V volt power supply.In this case, the maximum supply current is 250mA .
