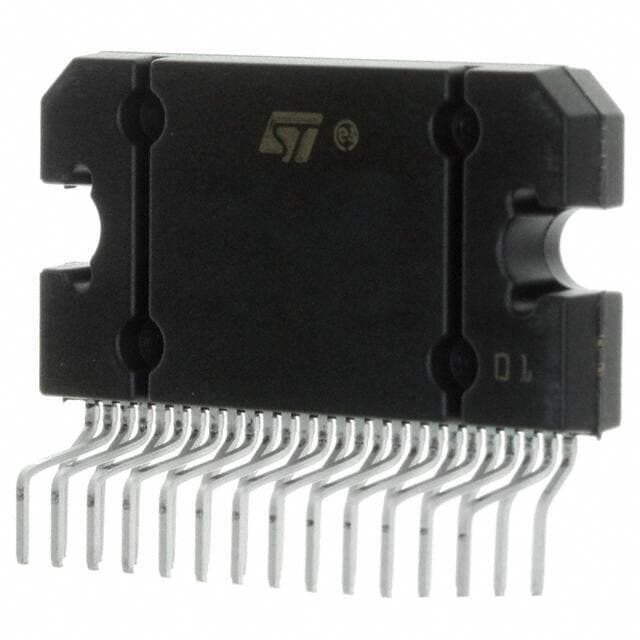

ST TDA7563AH

Manufacturer No:

TDA7563AH

Manufacturer:

Package:

27-Flexiwatt (Formed Leads)

Description:

22 kHz kHz 75W W Audio Amplifiers 85W W 18V V 27 pins 27-Flexiwatt (Formed Leads)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TDA7563AH information

ST TDA7563AH technical specifications, attributes, parameters and parts with similar specifications to ST TDA7563AH.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
13 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
27-Flexiwatt (Formed Leads)

Number of Pins
27

Operating Temperature
-55°C~150°C TJ

Packaging
Tube

Feature
I2C, Mute, Short-Circuit and Thermal Protection, Standby

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
27

ECCN Code
EAR99

Type
Class AB

HTS Code
8542.33.00.01

Subcategory
Audio/Video Amplifiers

Technology
BCDMOS

Voltage - Supply
8V~18V

Terminal Position
ZIG-ZAG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
TDA7563

Qualification Status
Not Qualified

Output Type
4-Channel (Quad)

Supply Voltage-Max (Vsup)
18V

Power Supplies
14.4V

Supply Voltage-Min (Vsup)
8V

Number of Channels
4

Power Dissipation
85W

Supply Current-Max
300mA

Output Power
50W

Input Offset Voltage (Vos)
60mV

Bandwidth
22 kHz

Voltage Gain
26dB

Max Output Power
75W

Max Output Power x Channels @ Load
75W x 4 @ 2 ?

Harmonic Distortion
10%

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST TDA7563AH.

Datasheets:

stmicroelectronics-tda7563ah-datasheets-5981.pdf

TDA7563AH Overview

This package is embedded in 27-Flexiwatt (Formed Leads) .This device is packaged in the way of Tube .27 terminations occur when a transmission line is terminated by a device with the same characteristic impedance as the transmission line.Amp parts uses 4-Channel (Quad) as the output.Class AB is the type of this electrical device.Computers or other communication devices have 27 pins, which are pronged contacts.Amp parts is mounted in the way of Through Hole .There is 8V~18V supply voltage for this electrical device.Amp parts is equipped wAmp partsh 4 channels.When operating, it is possible to ensure I2C, Mute, Short-Circuit and Thermal Protection, Standby .Ideally, the operating temperature should not exceed -55°C~150°C TJ .The device is equipped with 27 pins.Audio/Video Amplifiers incorporates this part.This item belongs to the family of TDA7563 .There is an electronic component mounted in the way of Through Hole .A maximum output power of 75W kWh per hour can be achieved with this electronic part.Amp parts is recommended that the supply voltage (Vsup) be maintained above 8V for normal operation.18V represents the maximal supply voltage (Vsup).The device is powered by a voltage of 14.4V .A maximum supply current of 300mA can be reached.

TDA7563AH Features

27-Flexiwatt (Formed Leads) package
27 pin count
TDA7563 family
75W kWh per hour

TDA7563AH Applications

There are a lot of STMicroelectronics
TDA7563AH audio amplifiers applications.

Addition and subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator and differentiator circuits
Logarithmic and exponential operation circuits
Multiplication and division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
