ST TDA75610LV

Manufacturer No:

TDA75610LV

Manufacturer:

Package:

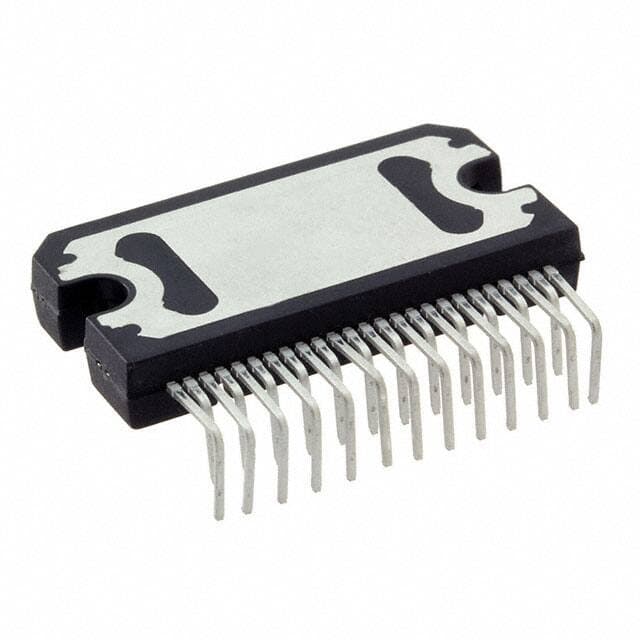

27-Flexiwatt (Formed Leads)

Description:

22 kHz kHz 45W W Audio Amplifiers 18V V 27 pins 27-Flexiwatt (Formed Leads)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TDA75610LV information

ST TDA75610LV technical specifications, attributes, parameters and parts with similar specifications to ST TDA75610LV.

Type
Parameter

Lifecycle Status
NRND (Last Updated: 8 months ago)

Factory Lead Time
13 Weeks

Mount
Surface Mount, Through Hole

Mounting Type
Surface Mount

Package / Case
27-Flexiwatt (Formed Leads)

Number of Pins
27

Operating Temperature
-40°C~105°C TA

Packaging
Tube

JESD-609 Code
e3

Feature
Mute, Standby

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
27

ECCN Code
EAR99

Type
Class AB

Terminal Finish
Tin (Sn)

HTS Code
8542.33.00.01

Subcategory
Audio/Video Amplifiers

Technology
BCDMOS

Voltage - Supply
6V~18V

Terminal Position
ZIG-ZAG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
TDA7561

Qualification Status
Not Qualified

Output Type
4-Channel (Quad)

Supply Voltage-Max (Vsup)
18V

Power Supplies
14.4V

Supply Voltage-Min (Vsup)
6V

Number of Channels
4

Output Power
44W

Input Offset Voltage (Vos)
80mV

Bandwidth
22 kHz

Voltage Gain
26dB

Max Output Power
45W

Max Output Power x Channels @ Load
45W x 4 @ 4 ?

Harmonic Distortion
10%

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST TDA75610LV.

Datasheets:

stmicroelectronics-tda75610lv-datasheets-7779.pdf

stmicroelectronics-tda75613lv-datasheets-3382.pdf

TDA75610LV Overview

In 27-Flexiwatt (Formed Leads) is embedded this device.Chips should be packaged in Tube cases.Transmission lines can be terminated with 27 terminations, which have devices that match the line's characteristic impedance.4-Channel (Quad) is used for its output.In this case, it is an electrical device of type Class AB .27 pins are pronged contacts on a computer or other communication device that form a signal interface.The electronic part is positioned in the way of Surface Mount .This electrical device has a 6V~18V supply voltage.Currently, the device has only 4 channels.Amp parts is possible to operate wAmp partsh Mute, Standby .No temperature higher than -40°C~105°C TA should be used for operations.Audio/Video Amplifiers contains it.Amp parts is part of the TDA7561 family.Its recommended mounting way belongs to Surface Mount, Through Hole .As of this moment, the maximum Output Power of this electronic part is 45W kWh per hour.Amp parts is important to keep the supply voltage (Vsup) above 6V so that the device functions normally.Vsup reaches 18V at the maximum.Amp parts is powered by a 14.4V volt power supply.

TDA75610LV Features

27-Flexiwatt (Formed Leads) package
TDA7561 family
45W kWh per hour

TDA75610LV Applications

There are a lot of STMicroelectronics
TDA75610LV audio amplifiers applications.

Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video and image computer boards
Medical instruments
Television broadcasting equipment
Displayers for aircraft and air transportation control systems
