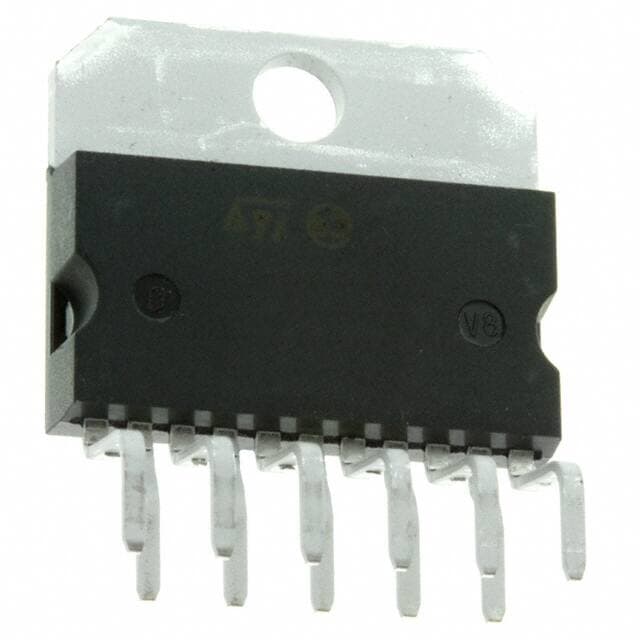

ST TDA7265B

Manufacturer No:

TDA7265B

Manufacturer:

Package:

Multiwatt-11 (Vertical, Bent and Staggered Leads)

Description:

200 kHz kHz 30W W Audio Amplifiers 40W W 11 pins Multiwatt-11 (Vertical, Bent and Staggered Leads)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TDA7265B information

ST TDA7265B technical specifications, attributes, parameters and parts with similar specifications to ST TDA7265B.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 8 months ago)

Factory Lead Time
6 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Multiwatt-11 (Vertical, Bent and Staggered Leads)

Number of Pins
11

Operating Temperature
-20°C~85°C TA

Packaging
Tube

JESD-609 Code
e3

Feature
Depop, Mute, Short-Circuit and Thermal Protection, Standby

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
11

ECCN Code
EAR99

Type
Class AB

Terminal Finish
Tin (Sn)

HTS Code
8542.33.00.01

Subcategory
Audio/Video Amplifiers

Max Power Dissipation
40W

Technology
BIPOLAR

Voltage - Supply
±8V~33V

Terminal Position
ZIG-ZAG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
TDA7265

Qualification Status
Not Qualified

Output Type
2-Channel (Stereo)

Power Supplies
+-23V

Number of Channels
2

Power Dissipation
40W

Supply Current-Max
130mA

Output Power
30W

Supply Type
Dual

Input Offset Voltage (Vos)
20mV

Bandwidth
200 kHz

Gain
29 dB

Max Dual Supply Voltage
33V

Max Output Power
30W

Min Dual Supply Voltage
8V

Dual Supply Voltage
24V

Max Output Power x Channels @ Load
30W x 2 @ 8 ?

Harmonic Distortion
10%

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST TDA7265B.

Datasheets:

stmicroelectronics-tda7265b-datasheets-5159.pdf

TDA7265B Overview

There is a device embedded in Multiwatt-11 (Vertical, Bent and Staggered Leads) .Amp parts is recommended that the chip be packaged in a Tube case.Amp parts is possible to terminate a transmission line wAmp partsh a device matching Amp partss characteristic impedance, referred to as a 11 termination.2-Channel (Stereo) is the output configured for it.The device is of type Class AB .The 11 pins are pronged contacts which are part of a signal interface in a computer or other communication device.Electronic parts are mounted in the way of Through Hole .Amp parts is powered by a voltage of ±8V~33V volts.2 channels are present on the device.Operation can be ensured by Depop, Mute, Short-Circuit and Thermal Protection, Standby .A temperature greater than -20°C~85°C TA should not be used.This chip belongs to Audio/Video Amplifiers .This is a member of the TDA7265 family.The electronic part is mounted in the way of Through Hole .As a result of the limAmp partsations of this electronic part, Amp parts has a maximum output power of 30W kWh per hour.This electronic part has a Dual supply type.The device is powered by a voltage of +-23V volts.A maximum supply current of 130mA is achieved.

TDA7265B Features

Multiwatt-11 (Vertical, Bent and Staggered Leads) package
TDA7265 family
30W kWh per hour

TDA7265B Applications

There are a lot of STMicroelectronics
TDA7265B audio amplifiers applications.

Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video and image computer boards
Medical instruments
Television broadcasting equipment
