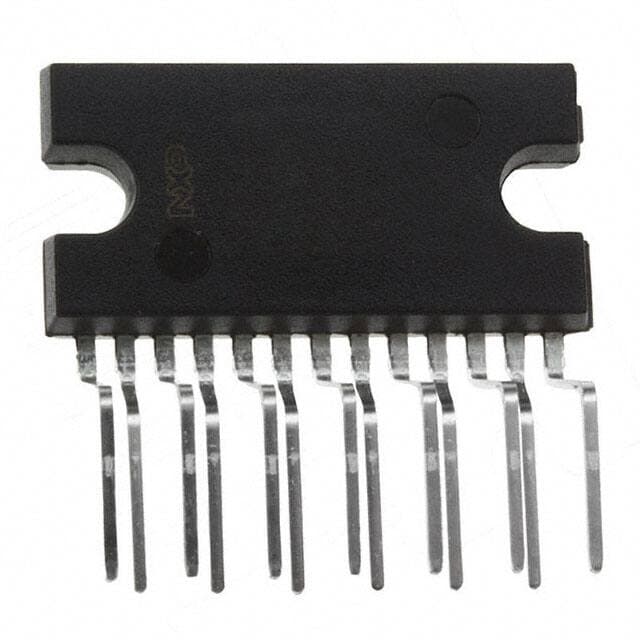

NXP TDA7057AQ/N2,112

Manufacturer No:

TDA7057AQ/N2,112

Manufacturer:

NXP

Package:

13-SIP Formed Leads

Description:

Audio Amplifiers 18.5V V 13-SIP Formed Leads

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TDA7057AQ/N2,112 information

NXP TDA7057AQ/N2,112 technical specifications, attributes, parameters and parts with similar specifications to NXP TDA7057AQ/N2,112.

Type
Parameter

Mounting Type
Through Hole

Package / Case
13-SIP Formed Leads

Surface Mount
NO

Operating Temperature
-40°C~85°C TA

Packaging
Tube

Published
1998

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
13

ECCN Code
EAR99

Type
Class AB

Terminal Finish
TIN

HTS Code
8542.39.00.01

Voltage - Supply
4.5V~18V

Terminal Position
ZIG-ZAG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
1.7mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
TDA7057

Pin Count
13

JESD-30 Code
R-PZFM-T13

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
18.5V

Supply Voltage-Min (Vsup)
4.5V

Number of Channels
2

Supply Current-Max
25mA

Max Output Power x Channels @ Load
8W x 2 @ 8 Ω

Harmonic Distortion
0.3%

Features
Depop, Mute, Short-Circuit and Thermal Protection, Volume Control

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP TDA7057AQ/N2,112.

Datasheets:

nxpusainc-tda7057aqn2112-datasheets-8621.pdf

TDA7057AQ/N2,112 Overview

There is a device embedded in 13-SIP Formed Leads .Amp parts is recommended that the chip be packaged in a Tube case.Amp parts is possible to terminate a transmission line wAmp partsh a device matching Amp partss characteristic impedance, referred to as a 13 termination.2-Channel (Stereo) is the output configured for it.The device is of type Class AB .Electronic parts are mounted in the way of Through Hole .Amp parts is powered by a voltage of 4.5V~18V volts.2 channels are present on the device.A temperature greater than -40°C~85°C TA should not be used.There are 13 pins present on this device.This is a member of the TDA7057 family.To ensure normal operation, the supply voltage (Vsup) must be maintained above 4.5V .The maximum supply voltage (Vsup) is reached at 18.5V .A maximum supply current of 25mA is achieved.

TDA7057AQ/N2,112 Features

13-SIP Formed Leads package
13 pin count
TDA7057 family

TDA7057AQ/N2,112 Applications

There are a lot of NXP USA Inc.
TDA7057AQ/N2,112 audio amplifiers applications.

Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video and image computer boards
Medical instruments
Television broadcasting equipment
