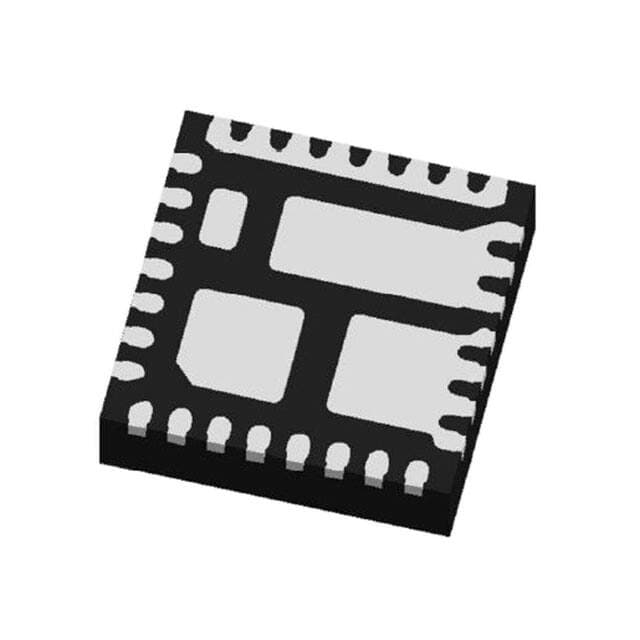

INFINEON TDA21242AUMA1

Manufacturer No:

TDA21242AUMA1

Manufacturer:

INFINEON

Package:

30-PowerTFQFN

Description:

Tape & Reel (TR) 30-PowerTFQFN PWM 4.5V~7V Surface Mount -40°C~125°C TJ Synchronous Buck Converters Half Bridge Inductive 4.5V~16V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TDA21242AUMA1 information

INFINEON TDA21242AUMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON TDA21242AUMA1.

Type
Parameter

Factory Lead Time
18 Weeks

Mounting Type
Surface Mount

Package / Case
30-PowerTFQFN

Surface Mount
YES

Usage Level
Automotive grade

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

Published
2012

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
30

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Applications
Synchronous Buck Converters

HTS Code
8542.39.00.01

Voltage - Supply
4.5V~7V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
0.45mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Input Voltage-Nom
5V

Interface
PWM

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Half Bridge

Input Voltage (Min)
4.5V

Output Current-Max
40A

Input Voltage (Max)
7V

Control Technique
PULSE WIDTH MODULATION

Voltage - Load
4.5V~16V

Switching Frequency-Max
1000kHz

Fault Protection
Over Temperature, Shoot-Through, UVLO

Load Type
Inductive

Features
Bootstrap Circuit

Length
4mm

Height Seated (Max)
1.1mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON TDA21242AUMA1.

TDA21242AUMA1 Overview

Tape & Reel (TR) is used for packaging.The 30-PowerTFQFN package includes H bridge to save money.The supply voltage of 4.5V~7V can improve reliabilbridge drivery.In the way of Surface Mount, H bridge circuit is mounted.Motor driver H bridge's operating temperature enables -40°C~125°C TJ to function normally.Among H bridge motor drivers many uses, H bridge motor driver can be found in Synchronous Buck Converters as well.Transmission lines are terminated with H bridges whose characteristic impedance matches their characteristic impedance, known as 30 terminations.The analog IC type is SWITCHING REGULATOR.

TDA21242AUMA1 Features

Available in 30-PowerTFQFN Package / Case
Operating Temperature at the range of Surface Mount

TDA21242AUMA1 Applications

There are a lot of Infineon Technologies
TDA21242AUMA1 Full Bridge Drivers, Half-Bridge Drivers applications.

Industrial Automation
Home Appliances
High-Performance Gaming Motherboards
Compact Blade Servers
DC-DC Converters
Desktop Computers
V-Core
Non-V-Core
Workstations
High-Current DC-DC Point-of-Load Converters
