ST TDA2003H

Manufacturer No:

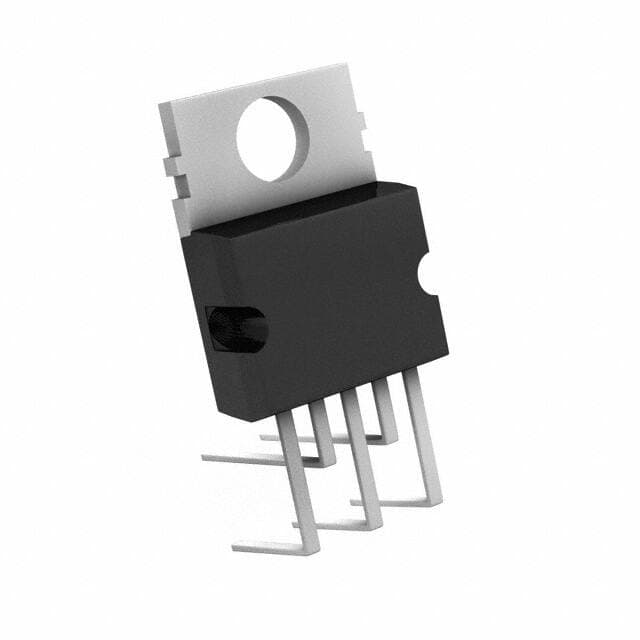

TDA2003H

Manufacturer:

Package:

Pentawatt-5 (Horizontal, Bent and Staggered Leads)

Description:

3.5A mA 22 kHz kHz 12W W Audio Amplifiers 20W W 18V V 5 pins Pentawatt-5 (Horizontal, Bent and Staggered Leads)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TDA2003H information

ST TDA2003H technical specifications, attributes, parameters and parts with similar specifications to ST TDA2003H.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Pentawatt-5 (Horizontal, Bent and Staggered Leads)

Number of Pins
5

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

JESD-609 Code
e3

Feature
Short-Circuit and Thermal Protection

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
5

ECCN Code
EAR99

Type
Class AB

Terminal Finish
Matte Tin (Sn) - annealed

Subcategory
Audio/Video Amplifiers

Max Power Dissipation
20W

Technology
BIPOLAR

Voltage - Supply
8V~18V

Terminal Position
ZIG-ZAG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
1.7mm

Reach Compliance Code
not_compliant

Base Part Number
TDA2003

Pin Count
5

Qualification Status
Not Qualified

Output Voltage
7.7V

Output Type
1-Channel (Mono)

Operating Supply Voltage
15V

Supply Voltage-Max (Vsup)
18V

Supply Voltage-Min (Vsup)
8V

Number of Channels
1

Nominal Supply Current
3.5A

Power Dissipation
20W

Quiescent Current
44mA

Output Power
12W

Supply Type
Single

Bandwidth
22 kHz

Voltage Gain
80dB

Power Supply Rejection Ratio (PSRR)
36dB

Gain
80 dB

Max Output Power
12W

Max Output Power x Channels @ Load
12W x 1 @ 1.6 ?

Harmonic Distortion
10%

RoHS Status
RoHS Compliant

Lead Free
Lead Free
