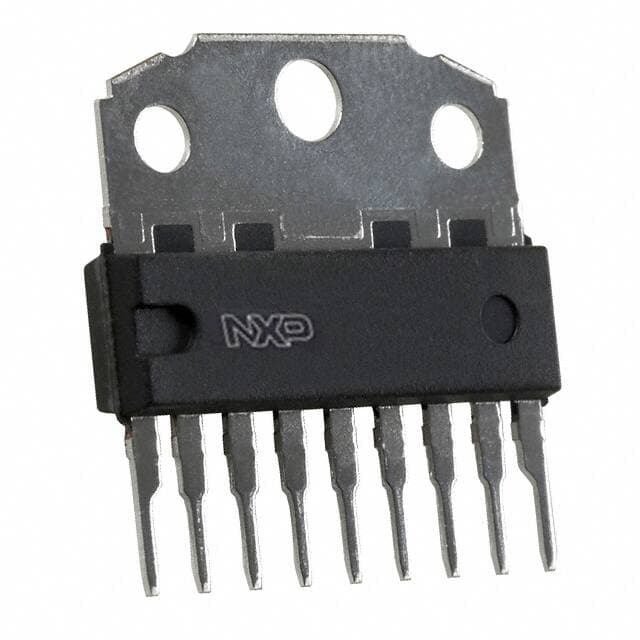

NXP TDA1519/N2,112
Manufacturer No:
TDA1519/N2,112
Manufacturer:
Package:
9-SIP Exposed Tab
Description:
20 kHz kHz Audio Amplifiers 18V V 9-SIP Exposed Tab
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
TDA1519/N2,112 information
NXP TDA1519/N2,112 technical specifications, attributes, parameters and parts with similar specifications to NXP TDA1519/N2,112.
- Type
- Parameter
- Mounting Type
- Through Hole
- Package / Case
- 9-SIP Exposed Tab
- Surface Mount
- NO
- Packaging
- Tube
- Published
- 1996
- JESD-609 Code
- e3
- Feature
- Depop, Mute, Short-Circuit and Thermal Protection, Standby
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 9
- Type
- Class B
- Terminal Finish
- TIN
- HTS Code
- 8542.31.00.01
- Voltage - Supply
- 6V~18V
- Terminal Position
- SINGLE
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Base Part Number
- TDA1519
- Pin Count
- 9
- JESD-30 Code
- R-PSFM-T9
- Qualification Status
- Not Qualified
- Output Type
- 2-Channel (Stereo)
- Supply Voltage-Max (Vsup)
- 18V
- Supply Voltage-Min (Vsup)
- 6V
- Supply Current-Max
- 80mA
- Output Power
- 6W
- Bandwidth
- 20 kHz
- Gain
- 40 dB
- Max Output Power x Channels @ Load
- 6W x 2 @ 4 ?
- Harmonic Distortion
- 10%
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NXP TDA1519/N2,112.
Datasheets:
TDA1519/N2,112 Overview
In 9-SIP Exposed Tab is embedded this device.Chips should be packaged in Tube cases.Transmission lines can be terminated with 9 terminations, which have devices that match the line's characteristic impedance.2-Channel (Stereo) is used for its output.In this case, it is an electrical device of type Class B .The electronic part is positioned in the way of Through Hole .This electrical device has a 6V~18V supply voltage.Currently, the device has only 2 channels.Amp parts is possible to operate wAmp partsh Depop, Mute, Short-Circuit and Thermal Protection, Standby .This device has 9 pins.Amp parts is part of the TDA1519 family.Amp parts is important to keep the supply voltage (Vsup) above 6V so that the device functions normally.Vsup reaches 18V at the maximum.Supply current reaches 80mA at its maximum.
TDA1519/N2,112 Features
9-SIP Exposed Tab package
9 pin count
TDA1519 family
TDA1519/N2,112 Applications
There are a lot of NXP USA Inc.
TDA1519/N2,112 audio amplifiers applications.
- Power control
- Information processing
- Weak signal detection
- Signal amplification
- Signal filtering
- Signal operation
- Video and image computer boards
- Medical instruments
- Television broadcasting equipment
- Displayers for aircraft and air transportation control systems
