TOSHIBA TCK104G,LF

Manufacturer No:

TCK104G,LF

Manufacturer:

TOSHIBA

Package:

6-UFBGA, WLCSP

Description:

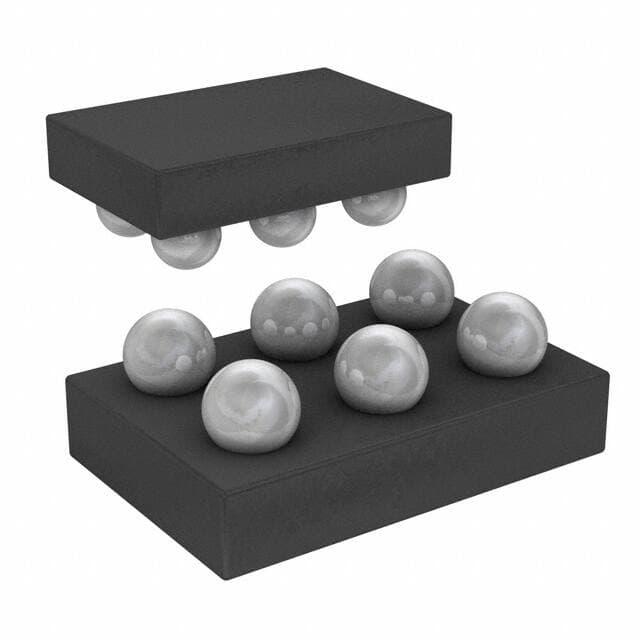

P-Channel PMIC 6 Pin 6-UFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TCK104G,LF information

TOSHIBA TCK104G,LF technical specifications, attributes, parameters and parts with similar specifications to TOSHIBA TCK104G,LF.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
6-UFBGA, WLCSP

Number of Pins
6

Supplier Device Package
6-WCSPB (0.80x1.2)

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2014

Feature
Load Discharge, Slew Rate Controlled

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Resistance
171mOhm

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Max Power Dissipation
800mW

Number of Outputs
1

Output Type
P-Channel

Max Output Current
800mA

Operating Supply Voltage
5.5V

Interface
On/Off

Current - Output (Max)
800mA

Output Configuration
High Side

Output Current
800mA

Max Supply Current
65?A

Input Type
Non-Inverting

Turn On Delay Time
130 ?s

Switch Type
General Purpose

Turn-Off Delay Time
9 ?s

Ratio - Input:Output
1:1

Voltage - Load
1.1V~5.5V

Fault Protection
Current Limiting (Fixed), Over Temperature

Rds On (Typ)
50mOhm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TOSHIBA TCK104G,LF.

TCK104G,LF Overview

The package is in the form of a Tape & Reel (TR).It is included in the package 6-UFBGA, WLCSP.The lighting driver is mounted in the Surface Mount position.General Purpose is the type of switch owned by it.Ensure reliable operation by setting the temperature to -40°C~85°C TA.The LED driver has a total of 1 outputs.The LED driving board operates with a supply voltage of Not Required.The maximum output voltage of this LED driver is P-Channel volts.Currently, the LED driving board is equipped with Load Discharge, Slew Rate Controlled features.It is necessary to use the 6 pins in order to operate the LED driver.800mAV is the maximum output of the LED driver.This results in the maximum output current dropping to 800mA to meet the operation criteria.The lighting driver is mounted in the direction of Surface Mount.Lighting drivers with 171mOhm resistance are used.This case results in a 800mA output current.When using this LED driving board, it is recommended that the supply voltage is set to 5.5V.Stable operation is possible with a maximum operating temperature of 85°C°C.In order to ensure reliability, it must operate at a minimum temperature of -40°C degrees Celsius.There is a maximum current requirement of 65?A for its operation.

TCK104G,LF Features

Resistance of 171mOhm

TCK104G,LF Applications

There are a lot of Toshiba Semiconductor and Storage
TCK104G,LF Power Switches ICs applications.

Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
Hard Disk Drives
Solid-State Drives
Hot Swap
HDD and SSD
