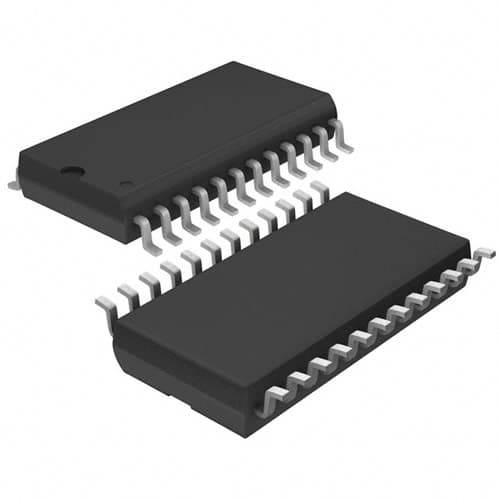

INFINEON TCA3727G

Manufacturer No:

TCA3727G

Manufacturer:

INFINEON

Package:

SOP, SOP24,.4

Description:

Description: Stepper Motor Controller, 1A, BIPolar, PDSO24, PLASTIC, DSO-24

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TCA3727G information

INFINEON TCA3727G technical specifications, attributes, parameters and parts with similar specifications to INFINEON TCA3727G.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
INFINEON TECHNOLOGIES AG

Part Package Code
SOIC

Package Description
SOP, SOP24,.4

Pin Count
24

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Samacsys Manufacturer
Infineon

Analog IC - Other Type
STEPPER MOTOR CONTROLLER

JESD-30 Code
R-PDSO-G24

Length
15.6 mm

Moisture Sensitivity Level
3

Number of Functions
1

Number of Terminals
24

Operating Temperature-Max
125 °C

Operating Temperature-Min
-40 °C

Output Current-Max
1 A

Package Body Material
PLASTIC/EPOXY

Package Code
SOP

Package Equivalence Code
SOP24,.4

Package Shape
RECTANGULAR

Peak Reflow Temperature (Cel)
260

Qualification Status
Not Qualified

Seated Height-Max
2.65 mm

Supply Voltage-Max (Vsup)
6.5 V

Supply Voltage-Min (Vsup)
4.5 V

Supply Voltage-Nom (Vsup)
5 V

Surface Mount
YES

Technology
BIPOLAR

Temperature Grade
AUTOMOTIVE

Terminal Form
GULL WING

Terminal Pitch
1.27 mm

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Width
7.6 mm

Download datasheets and manufacturer documentation for INFINEON TCA3727G.

Datasheets:

INFNS27443-1.pdf

TCA3727G Overview

You should run this amplifier at 5V.A STEPPER MOTOR CONTROLLERanalog integrated circuit is employed in the device.Drivers controllers belongs to the series [0].There are a total of 24pins on the part.This chip should be used at 125°C °C operating temperature.

TCA3727G Features

with 24 pins

TCA3727G Applications

There are a lot of Infineon Technologies AG
TCA3727G motor drivers applications.

Commercial office
Hospitality buildings
Smart lighting applications
Automotive applications
Dome
Dash
Footwell lighting
Indicator
Telltale lights
Infotainment backlighting
