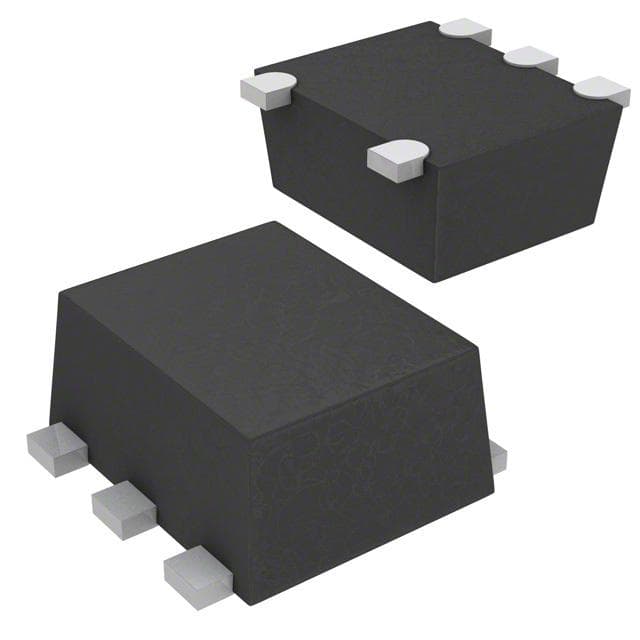

TOSHIBA TC7SZ17AFS(TPL3)

Manufacturer No:

TC7SZ17AFS(TPL3)

Manufacturer:

TOSHIBA

Package:

SOT-953

Description:

Buffers 1 Bit per Element SOT-953

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TC7SZ17AFS(TPL3) information

TOSHIBA TC7SZ17AFS(TPL3) technical specifications, attributes, parameters and parts with similar specifications to TOSHIBA TC7SZ17AFS(TPL3).

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-953

Number of Pins
5

Published
2014

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Max Supply Voltage
5.5V

Min Supply Voltage
1.65V

Propagation Delay
7.5 ns

Logic Function
Buffer, Inverting, Schmitt Trigger

Number of Bits per Element
1

High Level Output Current
32mA

Low Level Output Current
32mA

Height
480?m

Length
1mm

Width
800?m

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TOSHIBA TC7SZ17AFS(TPL3).

Datasheets:

toshiba-tc7sz17afstpl3-datasheets-8491.pdf

TC7SZ17AFS(TPL3) Overview

An interesting SOT-953 package is used. Surface Mount applications can be used with digital buffer. A 5-pin connector is used. Each element employs 1 bits. As low as -40°C is not a problem for it to operate. An ambient temperature of no more than 85°C should be used. The low-level output mode outputs 32mA. It is possible that the electronic part may conduct 32mA current in high-level output mode. It is strongly recommended that you use at least a voltage of 1.65V when operating this buffer. There is a maximum supply voltage rating of 5.5V.

TC7SZ17AFS(TPL3) Features

High Level Output: 32mA
Low Level Output: 32mA

TC7SZ17AFS(TPL3) Applications

There are a lot of Toshiba
TC7SZ17AFS(TPL3) Buffers & Transceivers applications.
