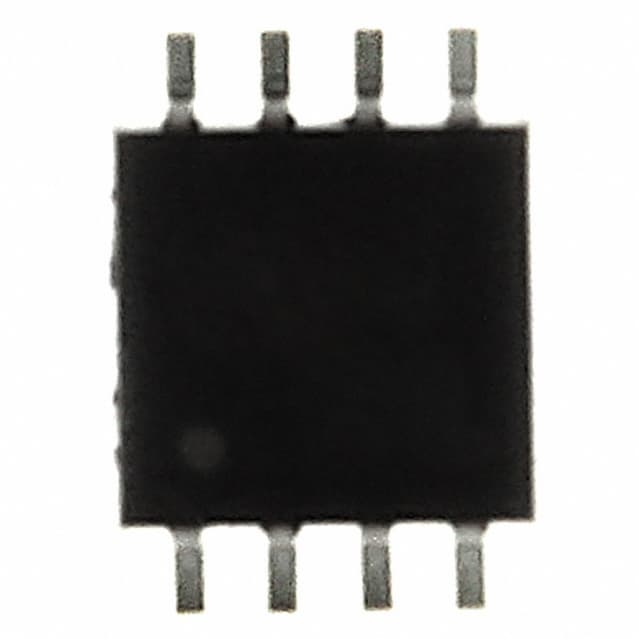

TOSHIBA TC75W54FU(TE12L,F)

Manufacturer No:

TC75W54FU(TE12L,F)

Manufacturer:

TOSHIBA

Package:

SSOP

Description:

700?A per Channel 1pA 60 dB Instrumentational OP Amps 3.5V SSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TC75W54FU(TE12L,F) information

TOSHIBA TC75W54FU(TE12L,F) technical specifications, attributes, parameters and parts with similar specifications to TOSHIBA TC75W54FU(TE12L,F).

Type
Parameter

Mount
Surface Mount

Package / Case
SSOP

Number of Pins
8

Packaging
Tape and Reel

Published
2007

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Operating Supply Voltage
3.5V

Number of Elements
2

Max Supply Voltage
7V

Min Supply Voltage
1.8V

Operating Supply Current
200?A

Nominal Supply Current
400?A

Power Dissipation
250mW

Slew Rate
0.7 V/?s

Common Mode Rejection Ratio
60 dB

Current - Input Bias
1pA

Output Current per Channel
700?A

Input Offset Voltage (Vos)
10mV

Gain Bandwidth Product
900 kHz

Voltage Gain
70dB

Max Dual Supply Voltage
3.5V

Min Dual Supply Voltage
900mV

Radiation Hardening
No

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TOSHIBA TC75W54FU(TE12L,F).

Datasheets:

toshiba-tc75w54fute12lf-datasheets-3719.pdf

TC75W54FU(TE12L,F) Overview

Packaged in a SSOP case, the buffer op amp is ready to use. The op amp is delivered to you in a Tape and Reel case. A total of 8 pins are present on the instrumentation amplifier. There is an input offset voltage of 10mV for this buffer op amp. As long as the supply current of the chip does not exceed 200?A, this op amp ic can operate. 70dB should remain the voltage gain. For the buffer op amp to operate properly, it must be above the temperature of -40°C degrees Celsius. No temperature greater than 85°C should be used. The linear amplifier consists of 2 different elements in total. The operating supply voltage of the buffer op amp is rated at 3.5V. In terms of the supply voltage, this electrical part is capable of operating at low voltage levels of under 7V. A high supply voltage of more than 1.8V is recommended for the instrumentation amplifier's supply voltage. As a rule of thumb, you should conduct this electronic part under a dual voltage supply of 3.5V volts.

TC75W54FU(TE12L,F) Features

70dB voltage gain

TC75W54FU(TE12L,F) Applications

There are a lot of Toshiba
TC75W54FU(TE12L,F) Instrumentational OP Amps applications.

Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
