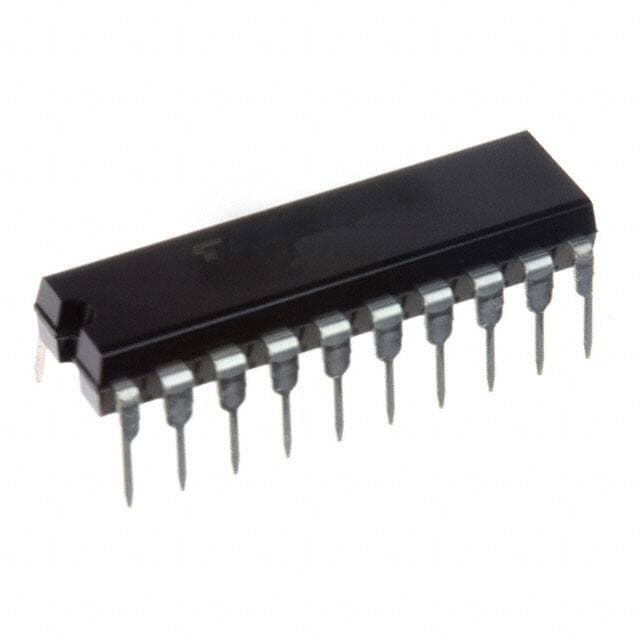

TOSHIBA TC74ACT374P
Manufacturer No:
TC74ACT374P
Manufacturer:
Package:
20-DIP (0.300, 7.62mm)
Description:
4.5V~5.5V 160MHz 8 Bit D-Type Flip Flop DUAL 74ACT374 TC74ACT Series 20-DIP (0.300, 7.62mm)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
TC74ACT374P information
TOSHIBA TC74ACT374P technical specifications, attributes, parameters and parts with similar specifications to TOSHIBA TC74ACT374P.
- Type
- Parameter
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- 20-DIP (0.300, 7.62mm)
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tube
- Series
- TC74ACT
- Published
- 1996
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 20
- Type
- D-Type
- Subcategory
- FF/Latches
- Technology
- CMOS
- Voltage - Supply
- 4.5V~5.5V
- Terminal Position
- DUAL
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Supply Voltage
- 5V
- Terminal Pitch
- 2.54mm
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Base Part Number
- 74ACT374
- JESD-30 Code
- R-PDIP-T20
- Function
- Standard
- Qualification Status
- Not Qualified
- Output Type
- Tri-State, Non-Inverted
- Polarity
- Non-Inverting
- Supply Voltage-Max (Vsup)
- 5.5V
- Power Supplies
- 5V
- Supply Voltage-Min (Vsup)
- 4.5V
- Number of Circuits
- 8
- Load Capacitance
- 50pF
- Number of Ports
- 2
- Number of Bits
- 8
- Clock Frequency
- 160MHz
- Propagation Delay
- 9.6 ns
- Quiescent Current
- 8?A
- Family
- ACT
- Output Characteristics
- 3-STATE
- Current - Output High, Low
- 75mA 75mA
- Max I(ol)
- 0.024 A
- Max Propagation Delay @ V, Max CL
- 9.6ns @ 5V, 50pF
- Trigger Type
- Positive Edge
- Input Capacitance
- 5pF
- Clock Edge Trigger Type
- Positive Edge
- Max Frequency@Nom-Sup
- 95000000Hz
- Length
- 24.6mm
- Height Seated (Max)
- 4.45mm
- Width
- 7.62mm
Download datasheets and manufacturer documentation for TOSHIBA TC74ACT374P.
TC74ACT374P Overview
In the form of 20-DIP (0.300, 7.62mm), it has been packaged. There is an embedded version in the package Tube. T flip flop uses Tri-State, Non-Invertedas its output configuration. Positive Edgeis the trigger it is configured with. Through Holeis occupied by this electronic component. A supply voltage of 4.5V~5.5V is required for operation. A temperature of -40°C~85°C TAis considered to be the operating temperature. This electronic flip flop is of type D-Type. The FPGA belongs to the TC74ACT series. A frequency of 160MHzshould be the maximum output frequency. A total of 1elements are contained within it. The number of terminations is 20. It is a member of the 74ACT374 family. An input voltage of 5Vpowers the D latch. There is 5pF input capacitance for this T flip flop. In this case, the D flip flop belongs to the ACTfamily. There is an electronic component mounted in the way of Through Hole. This device's clock edge trigger type is Positive Edge. The part you are looking for is included in FF/Latches. It is designed with a number of bits of 8. In this case, the maximum supply voltage (Vsup) reaches 5.5V. The supply voltage (Vsup) should be maintained above 4.5V for normal operation. Using 8 circuits, it is highly flexible. In order for the device to operate, it requires 5V power supplies. The flip flop has 2embedded ports. There is a consumption of 8?Aof quiescent current from it.
TC74ACT374P Features
Tube package
TC74ACT series
8 Bits
5V power supplies
TC74ACT374P Applications
There are a lot of Toshiba Semiconductor and Storage
TC74ACT374P Flip Flops applications.
- Counters
- Frequency Dividers
- Shift Registers
- Storage Registers
- Bounce elimination switch
- Data storage
- Data transfer
- Latch
- Registers
- Memory
