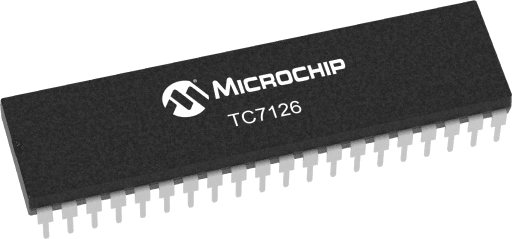

Microchip TC7126CPL

Manufacturer No:

TC7126CPL

Manufacturer:

Microchip

Package:

40-DIP (0.600, 15.24mm)

Description:

The TC7126A is a 3-1/2 digit CMOS analog-to-digital converter (ADC)containing all the active components necessary to construct a 0.05%resolution meas

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TC7126CPL information

Microchip TC7126CPL technical specifications, attributes, parameters and parts with similar specifications to Microchip TC7126CPL.

Type
Parameter

Hold function
No

Resolution Digits
3.5

Resolution Counts
2000

Temp Range Min
-25

Temp Range Max
85

Download datasheets and manufacturer documentation for Microchip TC7126CPL.

Data Sheets:

5d5fabcb173511cc429e600f0550d746.pdf

Brochures:

8519480d81fbff65c7ecb6b9a0c1396a.pdf

c8583f0625df8f5313577ba7a7747aa1.pdf

The TC7126 is a 3½ digit CMOS analog-to-digital converter (ADC) containing all the active components necessary to construct a 0.05% resolution measurement system. Seven-segment decoders, digit and polarity drivers, voltage reference, and clock circuit are integrated on-chip. The TC7126 directly drives a liquid crystal display (LCD), and includes a backplane driver. A low-cost, high-resolution indicating meter requires only a display, four resistors, and four capacitors. The TC7126's extremely low power drain and 9V battery operation make it ideal for portable applications. The TC7126 reduces linearity error to less than 1 count. Roll-over error (the difference in readings for equal magnitude but opposite polarity input signals) is below ±1 count. High-impedance differential inputs offer 1 pA leakage current and a 10¹² ohm input impedance. The 15 µVp-p noise performance guarantees a great reading, and the auto-zero cycle guarantees a zero display reading with a 0V input.

Fast Overrange Recovery, Guaranteed First Reading Accuracy
70 ppm/°C Typ.
Guaranteed Zero Reading with Zero Input
Low Noise: 15 µVp-p
High Resolution: 0.05%
Low Input Leakage Current: 1pA Typ., 10pA Max
Precision Null Detectors with True Polarity at Zero
High-Impedance Differential Input
Convenient 9V Battery Operation
Low Power Dissipation: 500µW Typ., 900µW Max.
