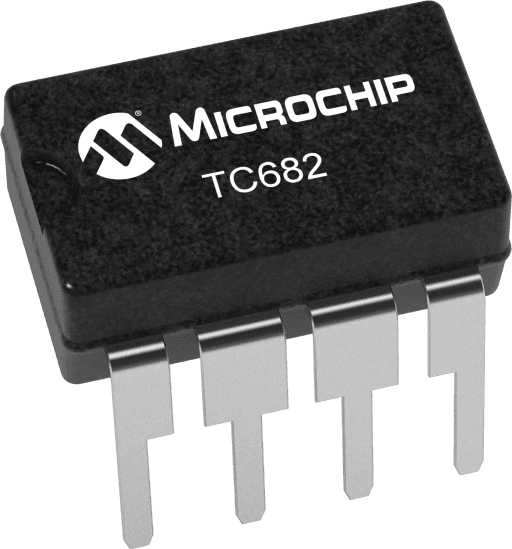

Microchip TC682EOA

Manufacturer No:

TC682EOA

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

Inverting Voltage Doubler

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TC682EOA information

Microchip TC682EOA technical specifications, attributes, parameters and parts with similar specifications to Microchip TC682EOA.

Type
Parameter

Typical Active Output Current (mA)
10

Output Voltage (V)
Vout \u003d -2Vin

Typical Quiescent Current (µA)
185

Vin Max (V)
5.5

Vin Min (V)
2.4

Temp. Range Max. (°C)
85

Temp. Range Min. (°C)
-40

Title
Inverting or Doubling

Download datasheets and manufacturer documentation for Microchip TC682EOA.

The TC682 is a CMOS charge pump converter that provides an inverted doubled output from a single positive supply. An on-board 12kHz (typical) oscillator provides the clock and only 3 external capacitors are required for full circuit implementation.Low output source impedance (typically 140Ohms), provides output current up to 10mA. The TC682 features low quiescent current and high efficiency, making it the ideal choice for a wide variety of applications that require a negative voltage derived from a single positive supply (for example: generation of -6V from a 3V lithium cell or -10V generated from a +5V logic supply).The minimum external parts count and small physical size of the TC682 make it useful in many medium-current, dual voltage analog power supplies.

99.9% Voltage Conversion Efficiency
92% Power Conversion Efficiency
Wide Input Voltage Range: +2.4V to +5.5V
Only 3 External Capacitors Required
185uA Supply Current
