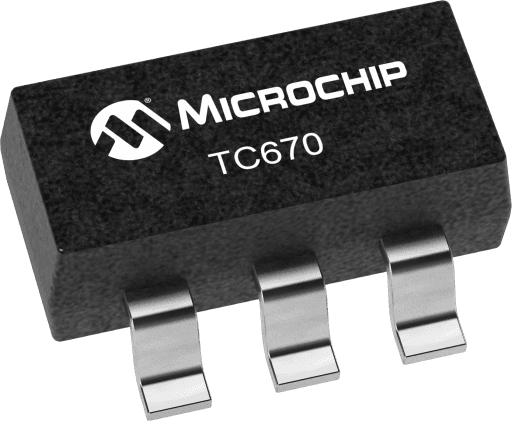

Microchip TC670ECHTR

Manufacturer No:

TC670ECHTR

Manufacturer:

Microchip

Package:

SOT-23-6

Description:

The TC670 is an integrated fan speed sensor that predicts and/or detects fan failure, preventing thermal damage to systems with cooling fans. When th

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TC670ECHTR information

Microchip TC670ECHTR technical specifications, attributes, parameters and parts with similar specifications to Microchip TC670ECHTR.

Type
Parameter

Device Description
Predictive Fan Fault Detector

Typical Accuracy (°C)
N/A

Over Temp Alert
No

SM Bus
No

Predictive Fan Fault
Yes

Max. Supply Current (µA)
150

Max Accuracy @ 25°C (°C)
N/A

Integrated temp Sensor
No

Fan Sense
Yes

External Temp Input
No

Auto Shutdown
No

PWMFreq
N/A

FanSpeedTable
N/A

Temp. Range Max. (°C)
+85

Temp. Range. Min. (°C)
-40

Vcc Range Max. (V)
+5.5

Vcc Range Min. (V)
+3.0

Download datasheets and manufacturer documentation for Microchip TC670ECHTR.

Data Sheets:

dad653bf7fcae4f329245413bda52389.pdf

Brochures:

8519480d81fbff65c7ecb6b9a0c1396a.pdf

c8583f0625df8f5313577ba7a7747aa1.pdf

874a5aa79d0d4d3f73e61536fe67cf85.pdf

9450125dc811feea8edf38322408ab59.pdf

The TC670 is an integrated fan speed sensor that predicts and/or detects fan failure, preventing thermal damage to systems with cooling fans. When the fan speed falls below a user specified level, the TC670 asserts an ALERT signal. With this design, a critical minimum fan speed is determined by the user. The fan alert level is then set with a resistor divider on the THRESHOLD pin of the TC670. When the minimum fan speed is reached, the ALERT pin changes from a digital HIGH to LOW. This failure detection works with all linear controlled 2-wire fans. The TC670 eliminates the need for 3-wire fan solutions.
A CLEAR option can be used to reset the ALERT signal, allowing the flexibility of connecting the ALERT output of the TC670 with other Alert/Fault interrupts in the system. This feature can be implemented so that false fan fault conditions do not initiate system shutdown. The TC670 is specified to operate over the full industrial temperature range of -40°C to 85°C. The TC670 is offered in a SOT23-6 pin package and consumes 90uA (typ) during operation. The space saving package and low power consumption make this device an ideal choice for systems requiring fan speed monitoring. The TC670 is an integrated fan speed sensor that predicts and/or detects fan failure, preventing thermal damage to systems with cooling fans. When the fan speed falls below a user specified level, the TC670 asserts an ALERT signal. The TC670 is a predictive fan failure detector that asserts a signal whenever the fan's RPM falls below a user-programmable RPM level.

Fan Wear-out Detection for 2-Wire Linear Controlled Fans
Replacement System for 3-Wire Fans
Fan Alert Signal when Fan Speed is below Programmed Threshold
CLEAR Capability for Eliminating False Alarm
Low Operating Current, 90uA (typ)
VDD Range 3.0V to 5.5V

User Guide

PURCHASE
