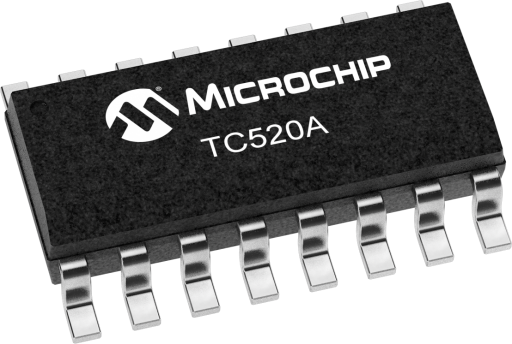

Microchip TC520ACOE

Manufacturer No:

TC520ACOE

Manufacturer:

Microchip

Package:

16-SOIC (0.295, 7.50mm Width)

Description:

The TC520A Serial Interface Adapter provides logic control for Microchip\u0027s TC500/500A/510/514 family of dual slope,integratingA/Dconverters. Itdirect

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TC520ACOE information

Microchip TC520ACOE technical specifications, attributes, parameters and parts with similar specifications to Microchip TC520ACOE.

Type
Parameter

Temp Range Min
0

Temp Range Max
70

Download datasheets and manufacturer documentation for Microchip TC520ACOE.

Data Sheets:

290588c677efc4b4847a2c703d05ec07.pdf

Brochures:

8519480d81fbff65c7ecb6b9a0c1396a.pdf

c8583f0625df8f5313577ba7a7747aa1.pdf

The TC520A Serial Interface Adapter provides logic control for Microchip's TC500/500A/510/514 family of dual slope,integratingA/Dconverters. ItdirectlymanagesTC500 converter phase control signals A, B, and CMPTR thereby reducing host processor task loading and software complexity. Communication with the TC520A is accomplished over a 3wire serial port. Key converter operating parameters are programmable for complete user flexibility. Data conversion initiated when the CE input is brought low. The converted data (plus overrange and polarity bits) are held in an 18 bit shift register until read by the processor, or until the next conversion is completed. Data may be clocked out of the TC520A at any time, and at any rate the user prefers. A Data Valid (DV) output is driven active at the start of each conversion cycle indicating the 18 bit shift register update has just been completed. This signal may be polled by the processor, or can be used as data ready interrupt. The TC520A timebase can be derived from an external frequency source of up to 6MHz; or can operate from its own external crystal. It requires a single 5V logic supply and dissipates less than 7.5mW.

Converts TC500/500A/510/514 to Serial Operation
Programmable Conversion Rate and Resolution for Maximum Flexibility
Supports up to 17 Bits of Accuracy Plus Polarity Bit
Low Power Operation: Typically 7.5mW
Polled or Interrupt Mode Operation
14-Pin PDIP or 16-Pin SOIC Packages
