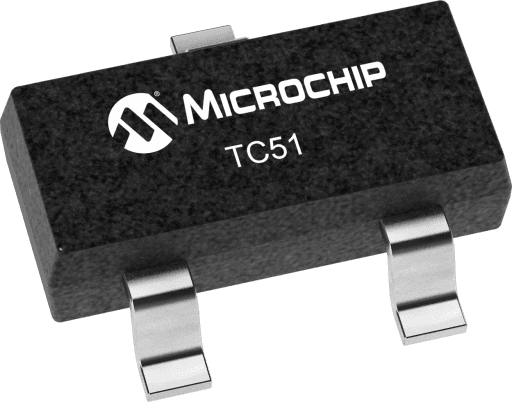

Microchip TC51N2202ECBTR

Manufacturer No:

TC51N2202ECBTR

Manufacturer:

Microchip

Package:

TO-236-3, SC-59, SOT-23-3

Description:

The TC51 is a very low power, open drain output, CMOS voltage detector with built-in delay. It is particularly well-suited for battery powered applic

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TC51N2202ECBTR information

Microchip TC51N2202ECBTR technical specifications, attributes, parameters and parts with similar specifications to Microchip TC51N2202ECBTR.

Type
Parameter

Driver Type
Detector

Min Operating Voltage (V)
0.7

Max Operating Voltage (V)
10

Nominal Reset Voltage Min
1.6

Nominal Reset Voltage Max
5

Watchdog Timer
No

Manual Reset
No

Power Fail
No

Min Operating Ambient Temperature (°C)
-40

Max Operating Ambient Temperature (°C)
85

Download datasheets and manufacturer documentation for Microchip TC51N2202ECBTR.

The TC51 is a very low power, open drain output, CMOS voltage detector with built-in delay. It is particularly well-suited for battery powered applications because of its extremely low 1µA operating current and small surface-mount packaging. Each part is laser-trimmed to the desired threshold voltage, which can be specified from 1.6V to 6.0V. The standard built-in output delay is 50msec-200msec. The device includes a comparator, low-current highprecision reference, laser-programmed voltage divider, hysteresis circuit and output driver with digital delay timer. In operation, the TC51’s output (V_OUT) remains in the logic HIGH state as long as V_IN is greater than the specified threshold voltage (V_{DET -}). When V_IN falls below V_{DET -}, the output is immediately driven to a logic LOW. VOUT remains LOW until V_IN rises above V_{DET -} by an amount V_HYST, whereupon it returns to a logic HIGH after expiration of the built-in delay time.

Precise Detection Thresholds: ±2.0%
Small Package: 3-Pin SOT-23A
Low Supply Current: Typ. 1µA
Wide Detection Range: 1.6V to 6.0V
Wide Operating Voltage Range: 0.7V to 10V
Built-in Delay Circuit: 50msec to 200 msec
Open-Drain Output
