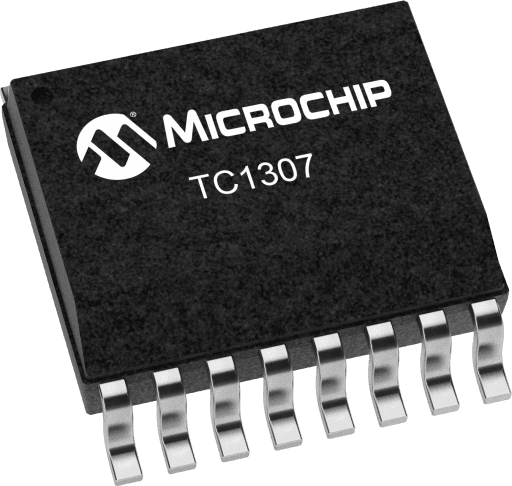

Microchip TC1307R-XYVQRTR
Manufacturer No:
TC1307R-XYVQRTR
Manufacturer:
Microchip
Package:
16-SSOP (0.154, 3.90mm Width)
Description:
The TC1307 combines four CMOS Low Dropout Regulators and a Microprocessor Monitor in a space-saving 16-Pin QSOP package. Designed specifically for
Quantity:
In Stock :5672
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Mon, Jun 15 - Tue, Jun 16, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
TC1307R-XYVQRTR Information
Microchip TC1307R-XYVQRTR technical specifications, attributes, parameters and parts with similar specifications to Microchip TC1307R-XYVQRTR.
- Type
- Parameter
- VIN Min (V) V (volt)
- 2.7
- VIN Max V (volt)
- 6
- VOUT V (volt)
- 1.8/2.5/2.8/3.0
- IOUT #1 Max mA (milliampere)
- 150
- IOUT #2 Max mA (milliampere)
- 150
- Quiescent Current µA (microampere)
- 220
- Voltage Drop Typ (mV)
- 100
- Accuracy (+/-) %
- 2.5
- Adjustable VOUT
- No
- Reverse Battery
- No
- Type
- Parameter
- Bypass Pin
- No
- Current Limit
- Yes
- Shutdown EN
- Yes
- Power Good Signal
- No
- Thermal Shutdown
- Yes
Download datasheets and manufacturer documentation for Microchip TC1307R-XYVQRTR.
Application Notes:
Data Sheets:
The TC1307 combines four CMOS Low Dropout Regulators and a Microprocessor Monitor in a space-saving 16-Pin QSOP package. Designed specifically for battery-operated systems, the device’s CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current for this device is typically 220µA at full load on all four LDO channels. The TC1307 features selectable output voltages for higher design flexibility. The SELECT Mode pins allows the user to select from 4 different values (1.8V, 2.5V, 2.8V and 3.0V). An active low RESET is asserted when the output voltage VOUT2 falls below the 2.63V reset voltage threshold. Other key features for the device include ultra low-noise operation, fast response to step changes in load, and very low dropout voltage, typically 165mV at full load. The device also incorporates both over-temperature and over-current protection. Each regulator is stable with an output capacitor of only 1µF and has a maximum output current of 150mA.
- (*Each channel (for Dual and Quad LDOs))
- Extremely Low Supply Current for Longer Battery Life
- SelectMode™: Selectable Output Voltages for High Design Flexibility
- Very Low Dropout Voltage
- 10µsec (Typ.) Wake Up Time from SHDN
- Guaranteed 150mA Output Current
- High Output Voltage Accuracy
- Power-Saving Shutdown Mode
- RESET Output Can Be Used as a Low Battery
- Detector or Processor Reset Generator
- Over-Current and Over-Temperature Protection
