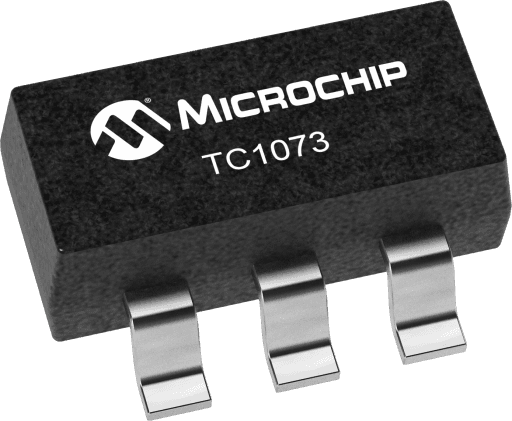

Microchip TC1073-1.8VCH713

Manufacturer No:

TC1073-1.8VCH713

Manufacturer:

Microchip

Package:

SOT-23-6

Description:

The TC1072 and TC1073 are high accuracy (typically \u0026amp;#177;0.5%) CMOS upgrade for older (bipolar) low dropout regulators. Designed specifically for bat

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TC1073-1.8VCH713 information

Microchip TC1073-1.8VCH713 technical specifications, attributes, parameters and parts with similar specifications to Microchip TC1073-1.8VCH713.

Type
Parameter

VIN Min (V) V (volt)
2.7

VIN Max V (volt)
6

VOUT V (volt)
1.8, 2.5, 2.6, 2.7, 2.8, 2.85, 3.0, 3.3, 3.6, 4.0, 5.0

IOUT #1 Max mA (milliampere)
100

Rated IOUT Max mA (milliampere)
100

Quiescent Current µA (microampere)
50

Voltage Drop Typ (mV)
180

Accuracy (+/-) %
2.5

Adjustable VOUT
No

Reverse Battery
No

Bypass Pin
Yes

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
Yes

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip TC1073-1.8VCH713.

The TC1072 and TC1073 are high accuracy (typically ±0.5%) CMOS upgrade for older (bipolar) low dropout regulators. Designed specifically for battery-operated systems, the devices’ CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 50µA at full load (20 to 60 times lower than in bipolar regulators). The devices’ key features include ultra low noise operation (plus optional Bypass input); very low dropout voltage (typically 85 mV,TC1072 and 180 mV,TC1073 at full load) and fast response to step changes in load. An error output (ERROR) is asserted when the devices are out-of-regulation (due to a low input voltage or excessive output current). ERROR can be used as a low battery warning or as a processor RESET signal (with the addition of an external RC network). Supply current is reduced to 0.5 µA (max), and both VOUT and ERROR are disabled when the shutdown input is low. The devices incorporate both over-temperature and over-current protection. The TC1072 and TC1073 are stable with an output capacitor of only 1 µF and have a maximum output current of 50 mA. For higher output current versions, please see the TC1185, TC1186, TC1187 (IOUT = 150 mA) and TC1107, TC1108 and TC1173 (IOUT = 300 mA) data sheets.

Very Low Ground Current for Longer Battery Life!
Very Low Dropout Voltage
Choice of 50 mA and 100 mA Output (TC1072, TC1073, Respectively)
High Output Voltage Accuracy
Standard or Custom Output Voltages
Power-Saving Shutdown Mode
ERROR Ouput can be Used as a Low Battery
Detector, or Processor Reset Generator
Bypass Input for Ultra-Quiet Operation
Over-Current and Over-Temperature Protection
Pin Compatible Upgrades for Bipolar Regulators
